CEI Ltd

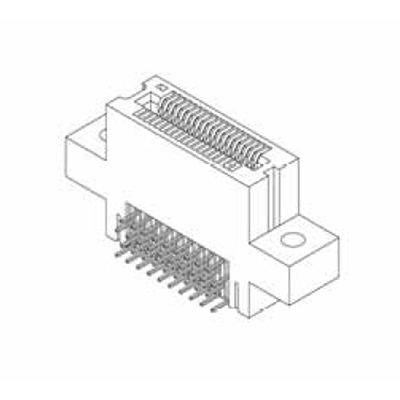

GBE50DHAD-1

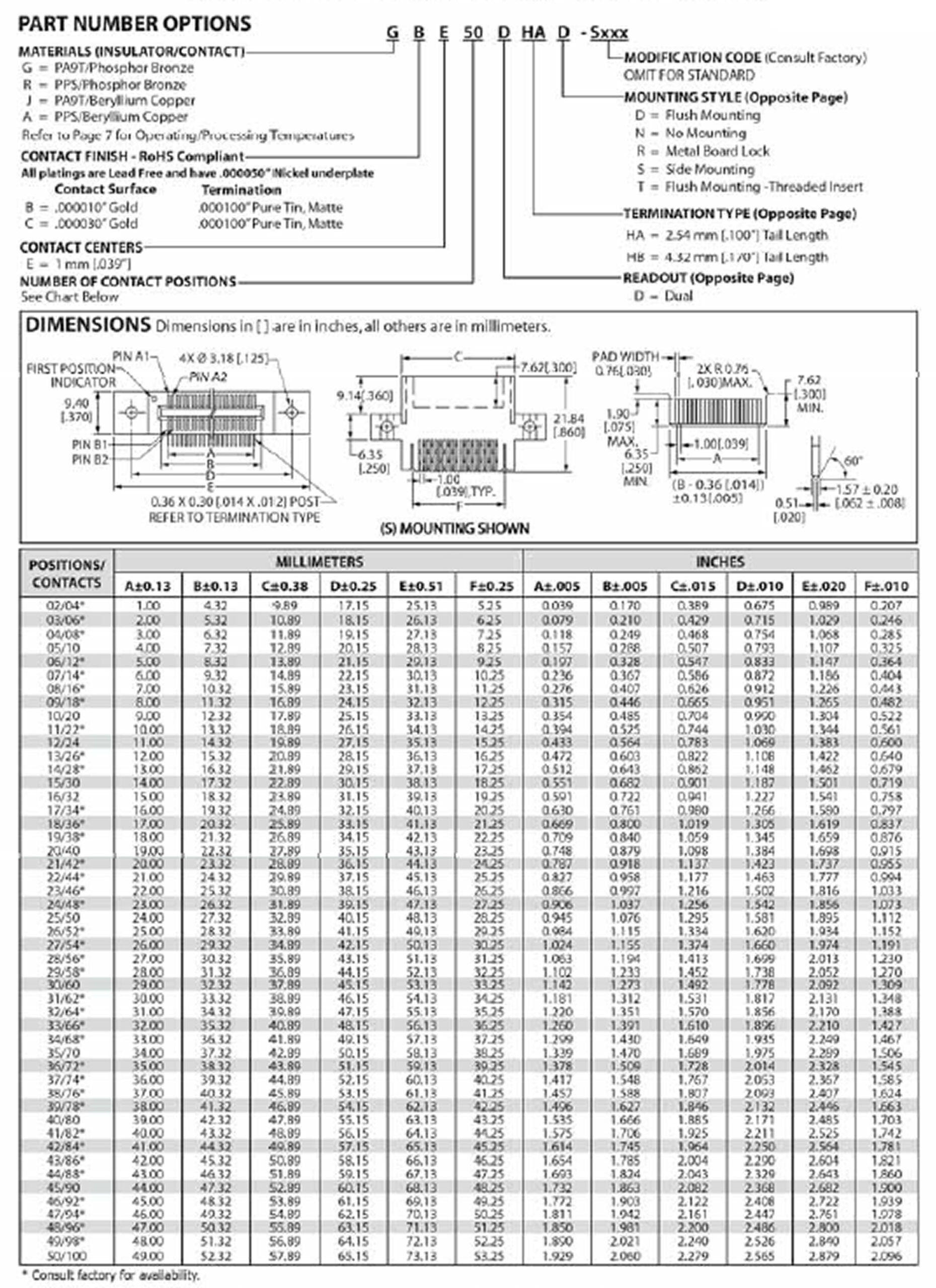

GBE50DHADdog

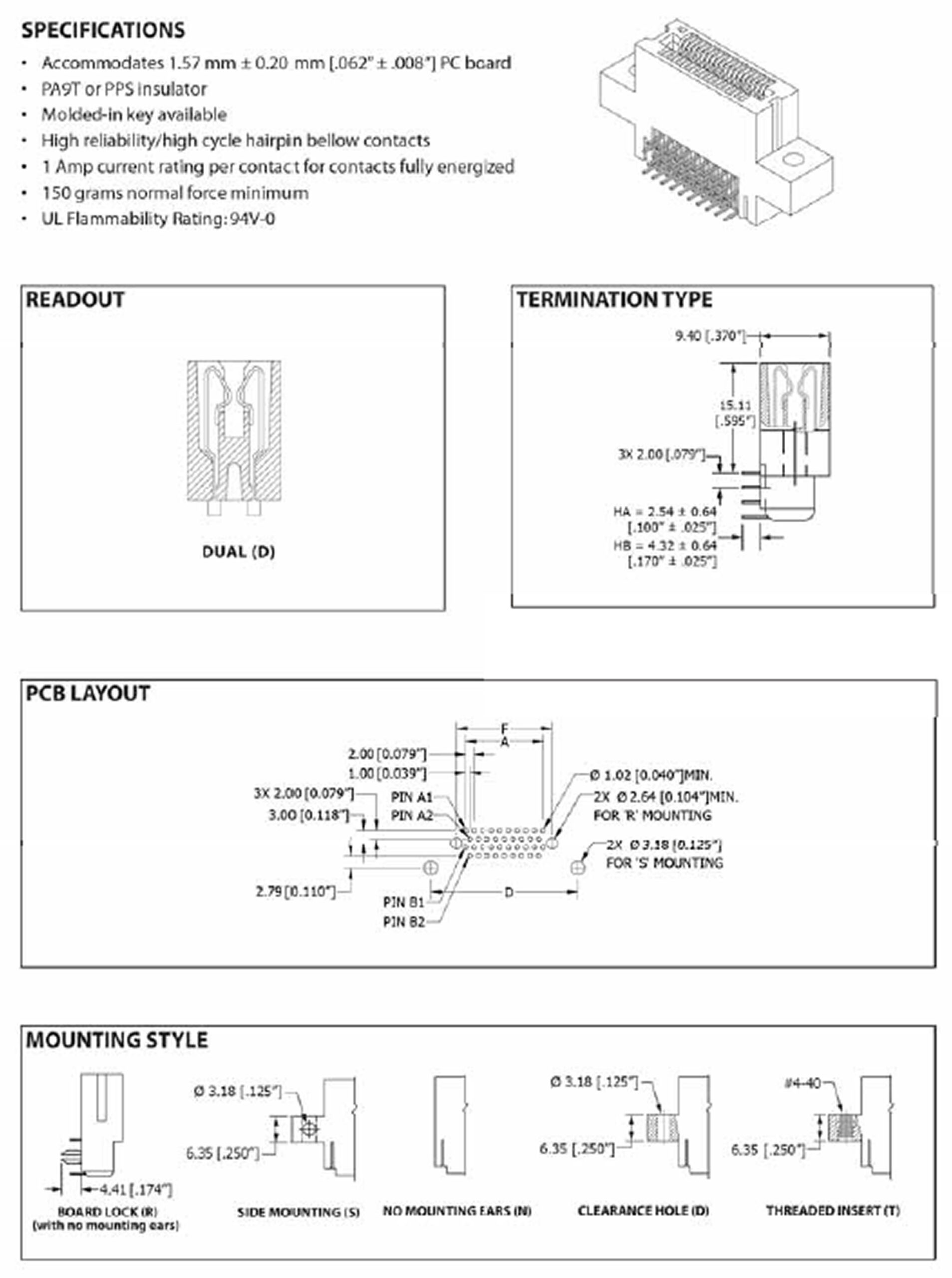

GBE50DHADdrawing

Card Edge Header 1.00mm [.039″] Contact Centres, 21.84mm [.860″] Insulator Height

£0.00

The GBE50DHAD is a female card edge header that accommodates a 1.57mm thick PC board. Each connector is available with a number of options including number of positions and contacts, insulator and contact material options, contact finish, termination type and mounting style.

SKU: GBE50DHAD
Category: , ,

Description

The GBE50DHAD is a female card edge header that accommodates a 1.57mm thick PC board. Each connector is available with a number of options including number of positions and contacts, insulator and contact material options, contact finish, termination type and mounting style.
