Card Edge Header 1.27mm [.050″] Contact Centres, 12.40 [.488″] Insulator Height

Name: Card Edge Header 1.27mm [.050"] Contact Centres, 12.40 [.488"] Insulator Height
SKU: GCB20DYHN-S1355
Availability: InStock

£0.00

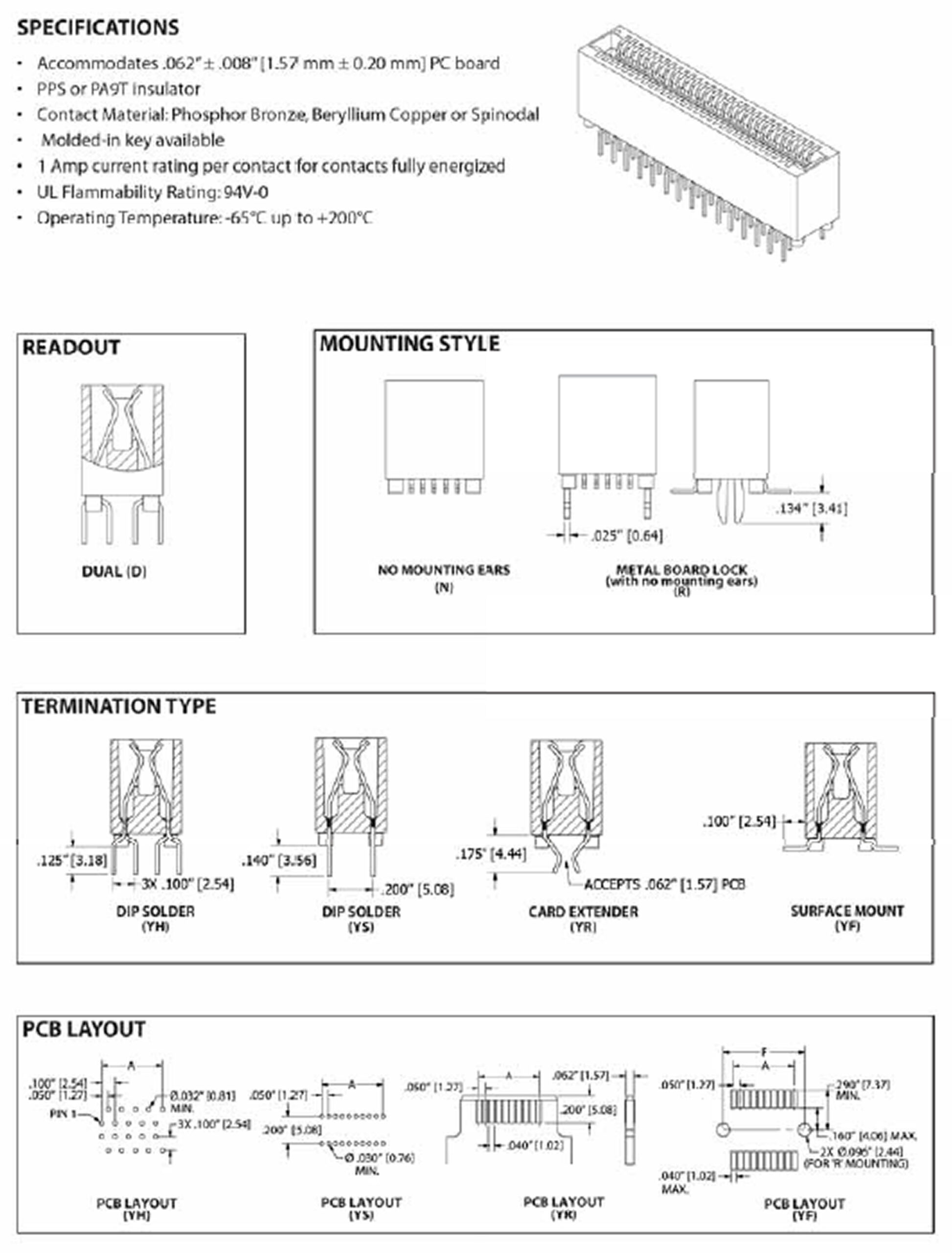

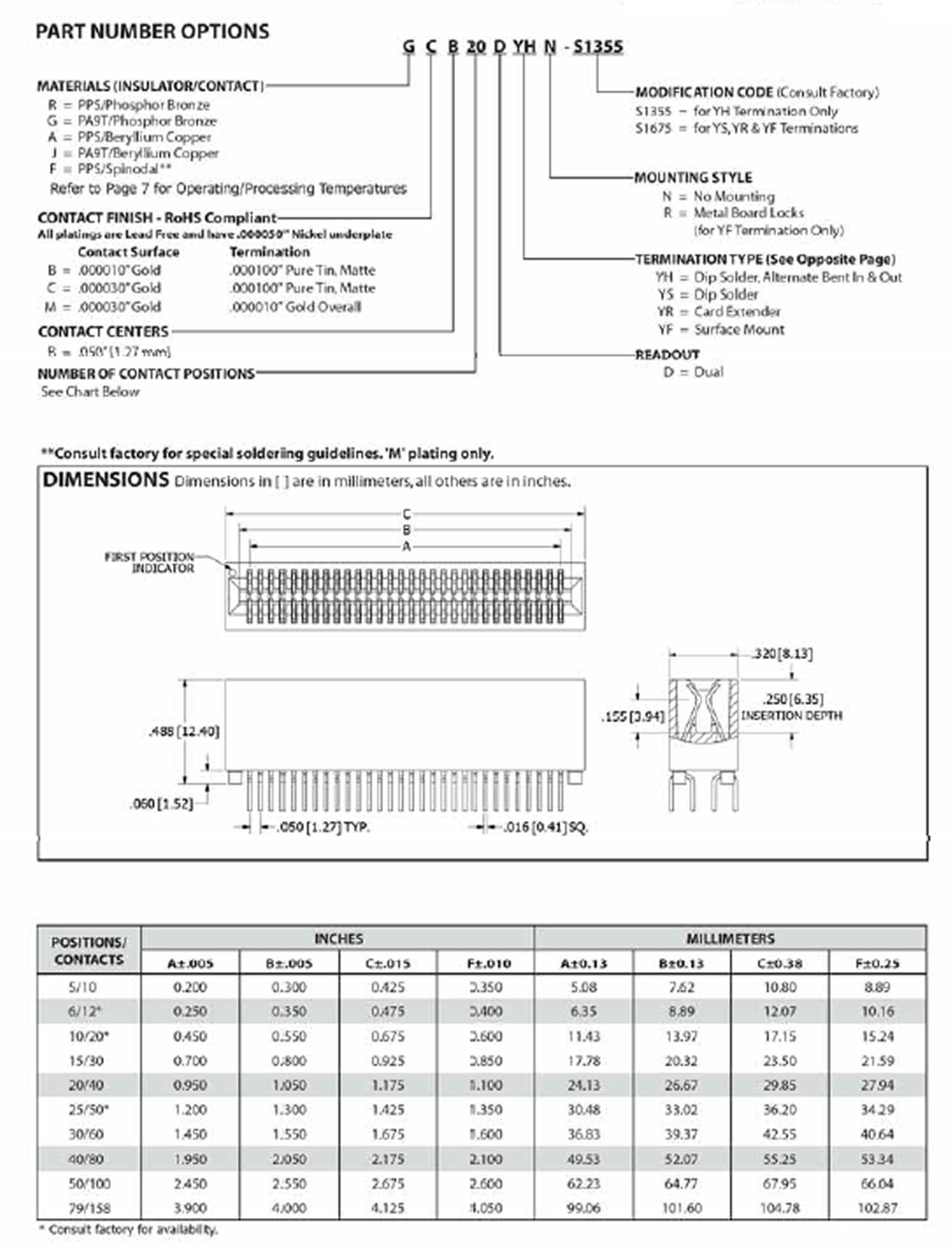

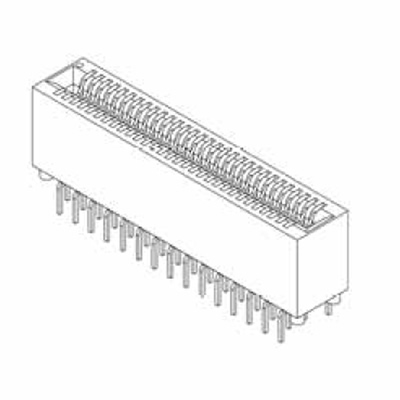

The GCB20DYHN-S1355 is a female card edge header that accommodates a 1.57mm thick PC board. The connectors is available in a number of options including Insulator and contact materials, contact finish and termination type.

SKU: GCB20DYHN-S1355

Category: 1.27mm [.050"], All Products, Card Edge

Description

Description

The GCB20DYHN-S1355 is a female card edge header that accommodates a 1.57mm thick PC board. The connectors is available in a number of options including Insulator and contact materials, contact finish and termination type.
