C/4 Body DIN 41612

£0.00

The DIN 41612 C/4 type body offers a choice of eight contact arrangements over 3 rows. It is complimentary to the standard C body connector range and is classed as a quarter length C body. It is available in both male and female connection types.  This is a PCB mounted connector and is offered with right angle […]

SKU: C-4BodyDIN41612
Category: , ,

Description

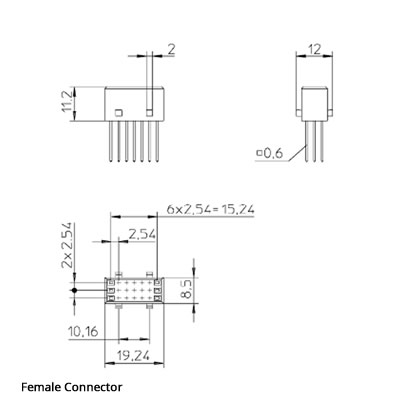

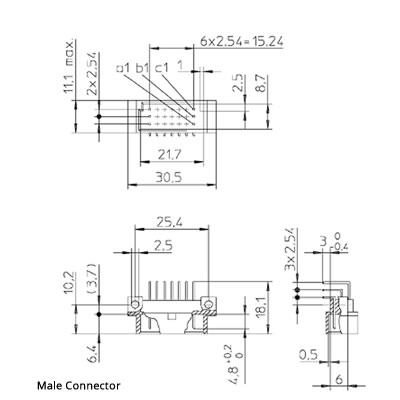

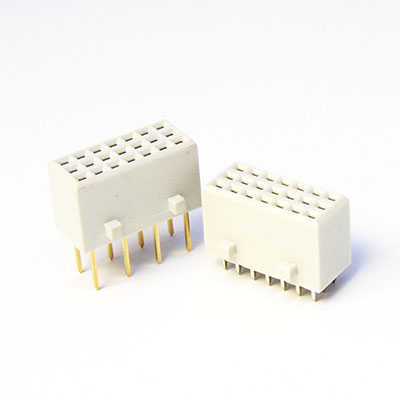

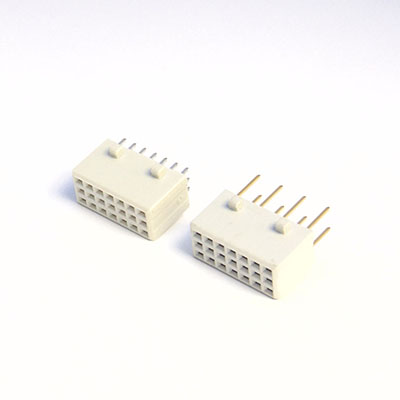

The DIN 41612 C/4 type body offers a choice of eight contact arrangements over 3 rows. It is complimentary to the standard C body connector range and is classed as a quarter length C body. It is available in both male and female connection types.

This is a PCB mounted connector and is offered with right angle and straight solder tails for 1.6mm PCB thicknesses. For PCB boards of 2.4mm thick or if press-in termination is required for 1.5 to 4.0mm depth, then a  longer straight solder tail specification is available. Wire wrap tail and hand solder eyelets are also available.

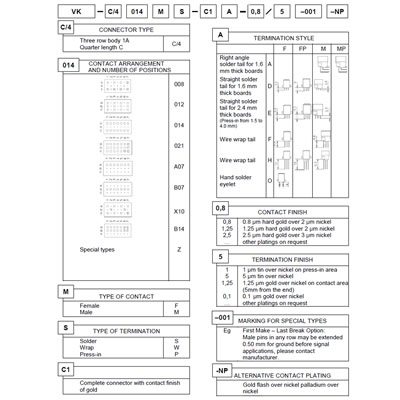

Each DIN 41612 connector is offered with a number of different contact and termination finishes.
