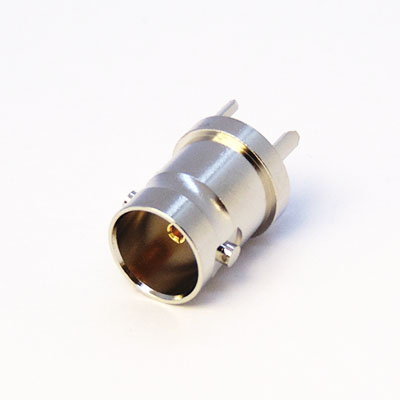

061-1 3GHz Top Entry PCB Mounted Press Fit Hybrid BNC

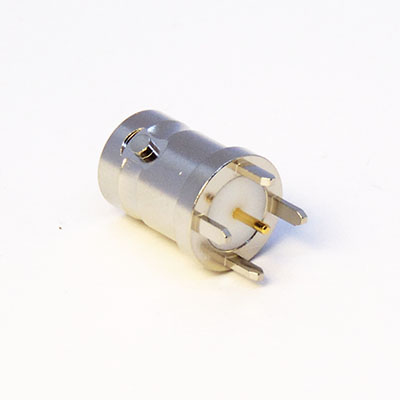

061-3 3GHz Top Entry PCB Mounted Press Fit Hybrid BNC

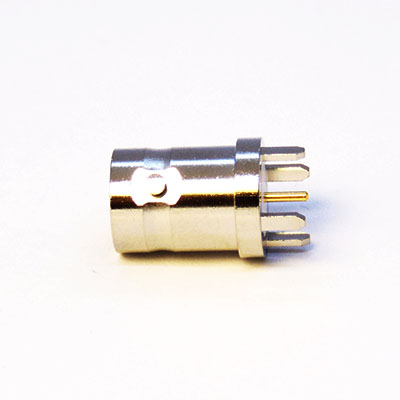

061-2 3GHz Top Entry PCB Mounted Press Fit Hybrid BNC

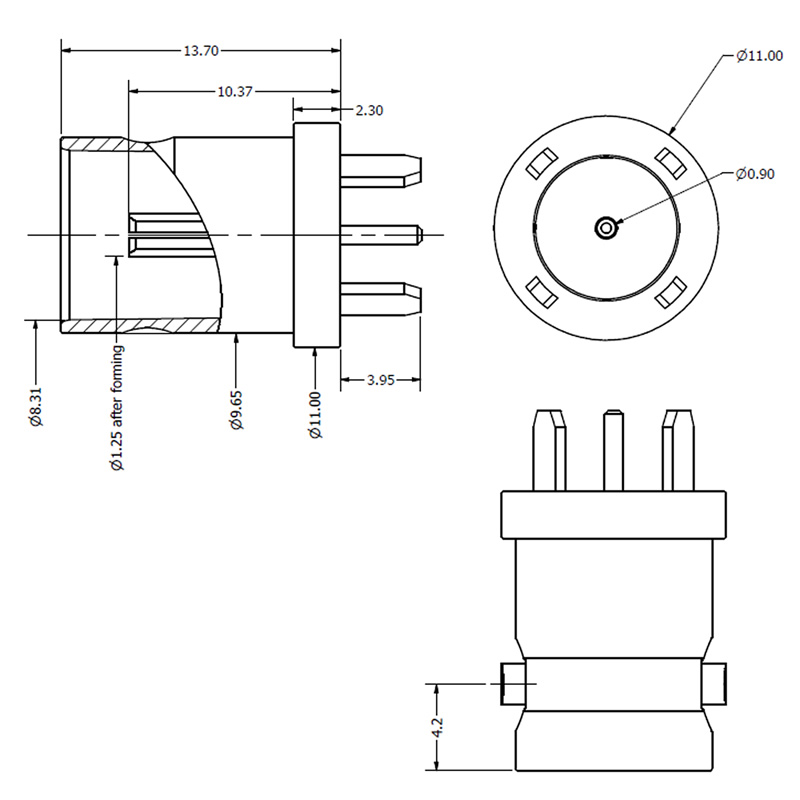

061drawing 3GHz Top Entry PCB Mounted Press Fit Hybrid BNC

C-SX-061 – 3GHz Top Entry PCB Mounted Press Fit Hybrid BNC Connector

Name: C-SX-061 - 3GHz Top Entry PCB Mounted Press Fit Hybrid BNC Connector
SKU: C-SX-061
Availability: InStock

£0.00

The C-SX-061 precision 75Ω BNC Connector is a top entry PCB mounted connector which combines the advantages of press fit or solder applications. This precision BNC Connector can be pressed into the PCB in one operation to secure the outer contacts. A further solder operation then provides the precision 75Ω bond with the centre contact. […]

SKU: C-SX-061

Category: All Products, BNC, Coaxial Connectors

Tags: 3GHz, BNC, Top entry

Description

Description

The C-SX-061 precision 75Ω BNC Connector is a top entry PCB mounted connector which combines the advantages of press fit or solder applications. This precision BNC Connector can be pressed into the PCB in one operation to secure the outer contacts. A further solder operation then provides the precision 75Ω bond with the centre contact. Other materials such as gold plating are available to customer requirement.
