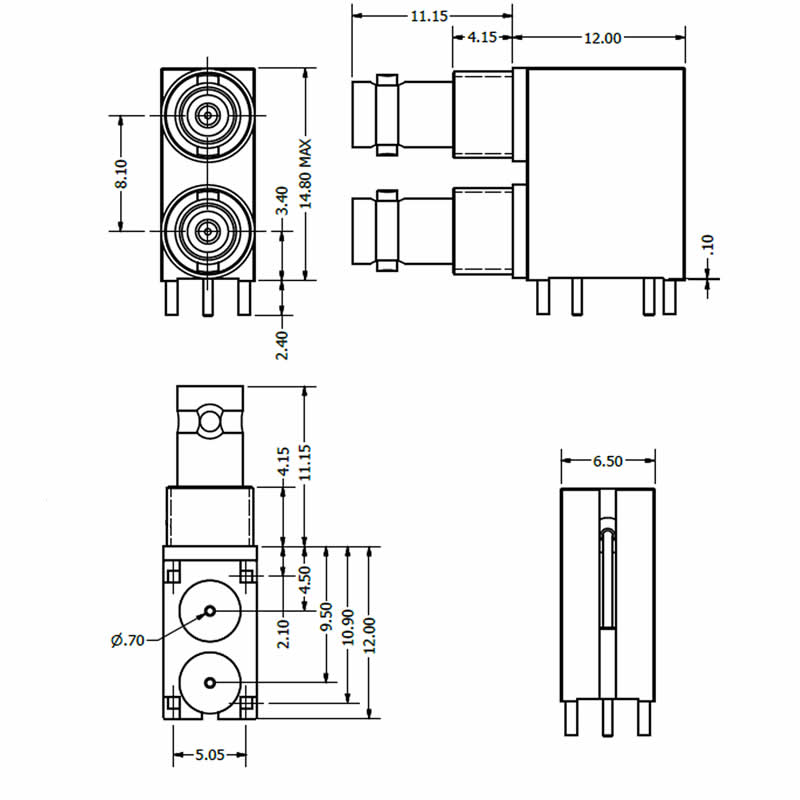

C-SX-183 – Dual Port Right Angle Micro BNC Connector

Description

Our range of 12GHz Precision Micro BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVision™ Brand name, while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The  Micro BNC connectors are mateable with any standard Micro BNC connector, but to achieve optimum performance we recommend using Cambridge Connectors 12GHz CoaxVision™ Micro BNC Connectors in both halves.

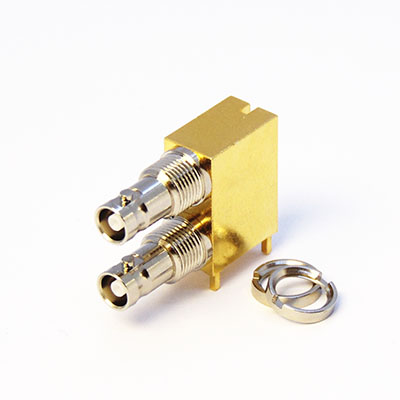

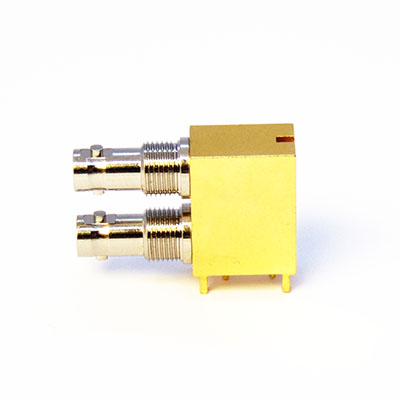

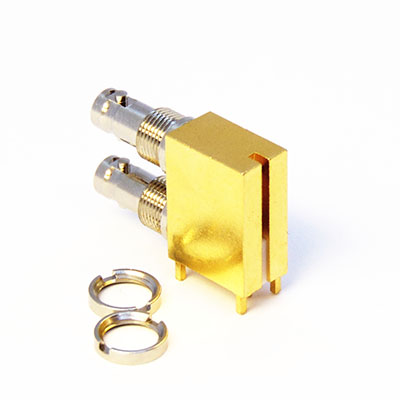

The C-SX-183 is a dual port Micro BNC connector, removing the need for PCB mezzanine configurations in high density applications and is supplied with two M6 nuts.
