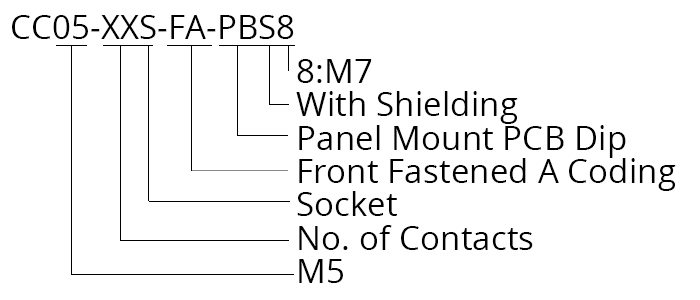

CC05-XXS-FA-PBS8 – M5 Front Fastening Shielded Socket (A Code)

Description

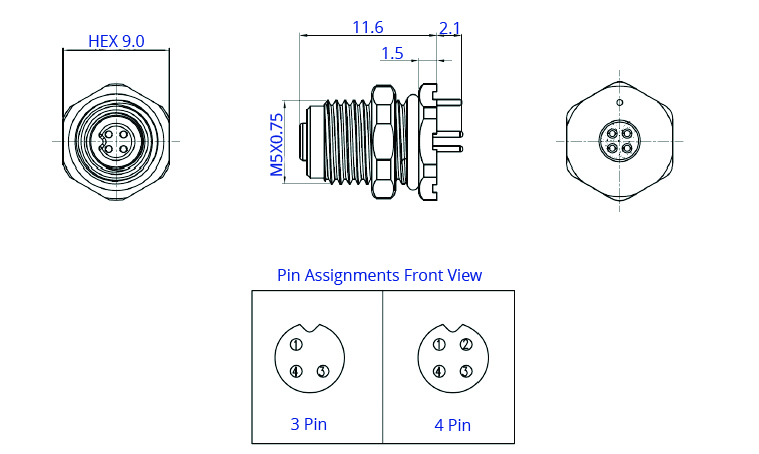

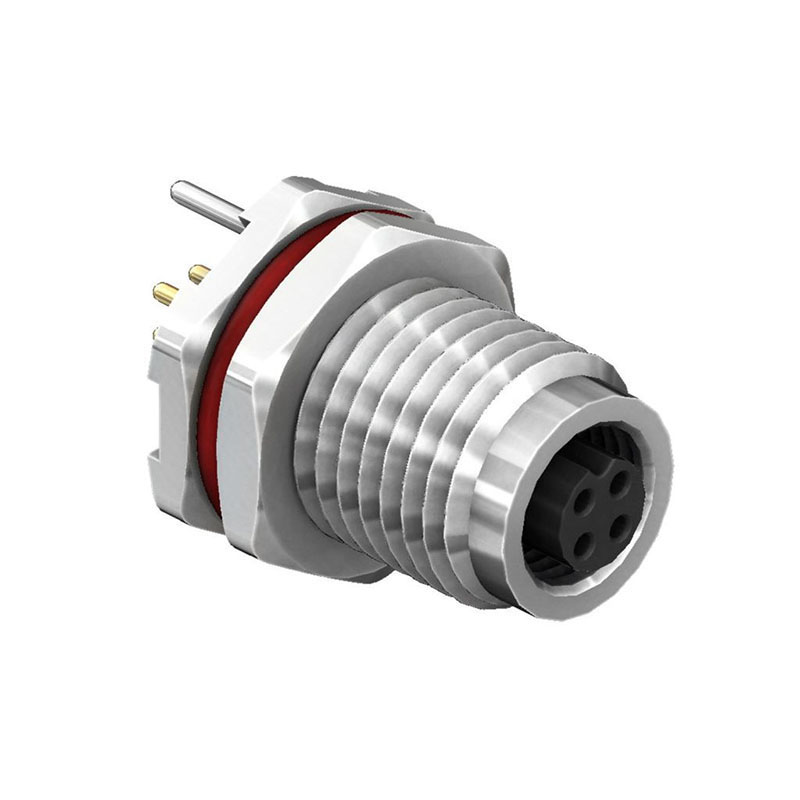

The CC05-XXS-FA-PBS8 is a M5 front fastening panel mounted socket with a shielding pin, to prevent interference. This circular connector is available in an A coding, with the option of a 3 or 4 way pin assignment and a PCB straight pin through hole termination to the rear. The M5 offers a compact and rugged design and a superior connection with its screw locking mechanism. The IP67 waterproof rating removes the concern of any dust or water entering your equipment.

Features

• Most compact connector in the M series range of connectors
• Compact and rugged design with screw locking mechanism
• IP67 Waterproof rating
• Robust miniature sensors
• Suitable for a wide selection of applications including automotive and process control
