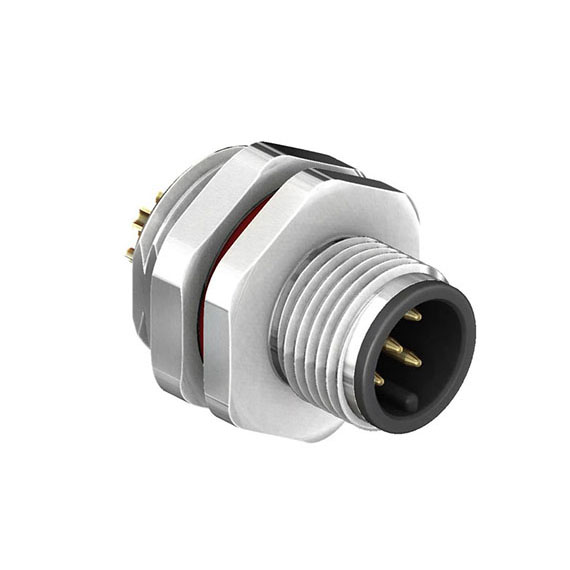

CC12-XXP-RX-PMX M12 Circular Connector A and D Code Panel Mount Solder Rear Fastened Plug

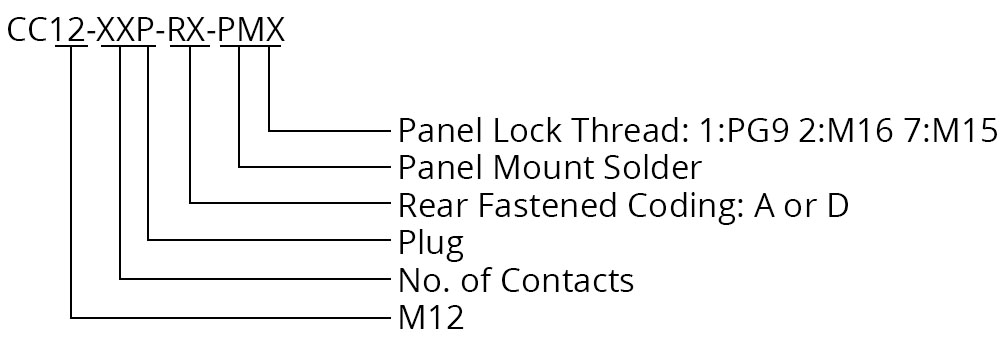

CC12-XXP-RX-PMX talking dog

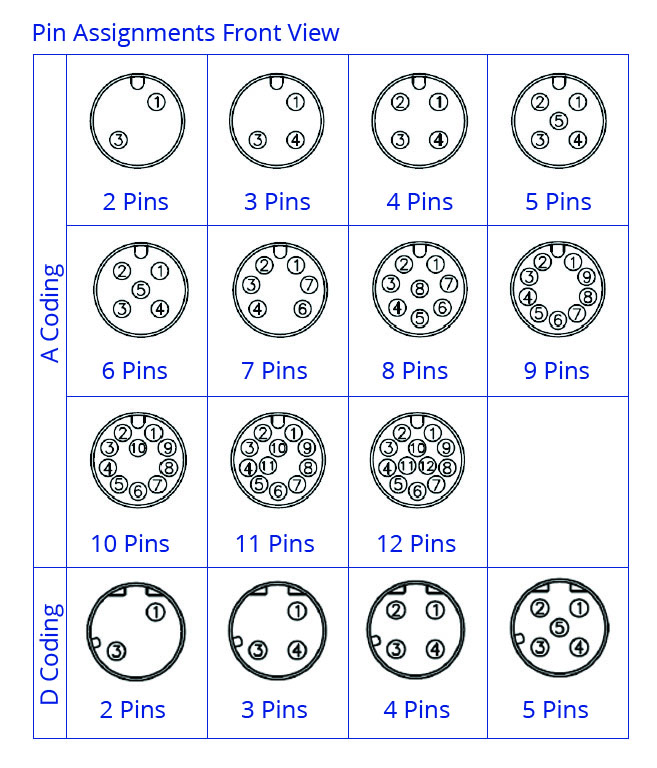

CC12-XXP-RX-PMX pin

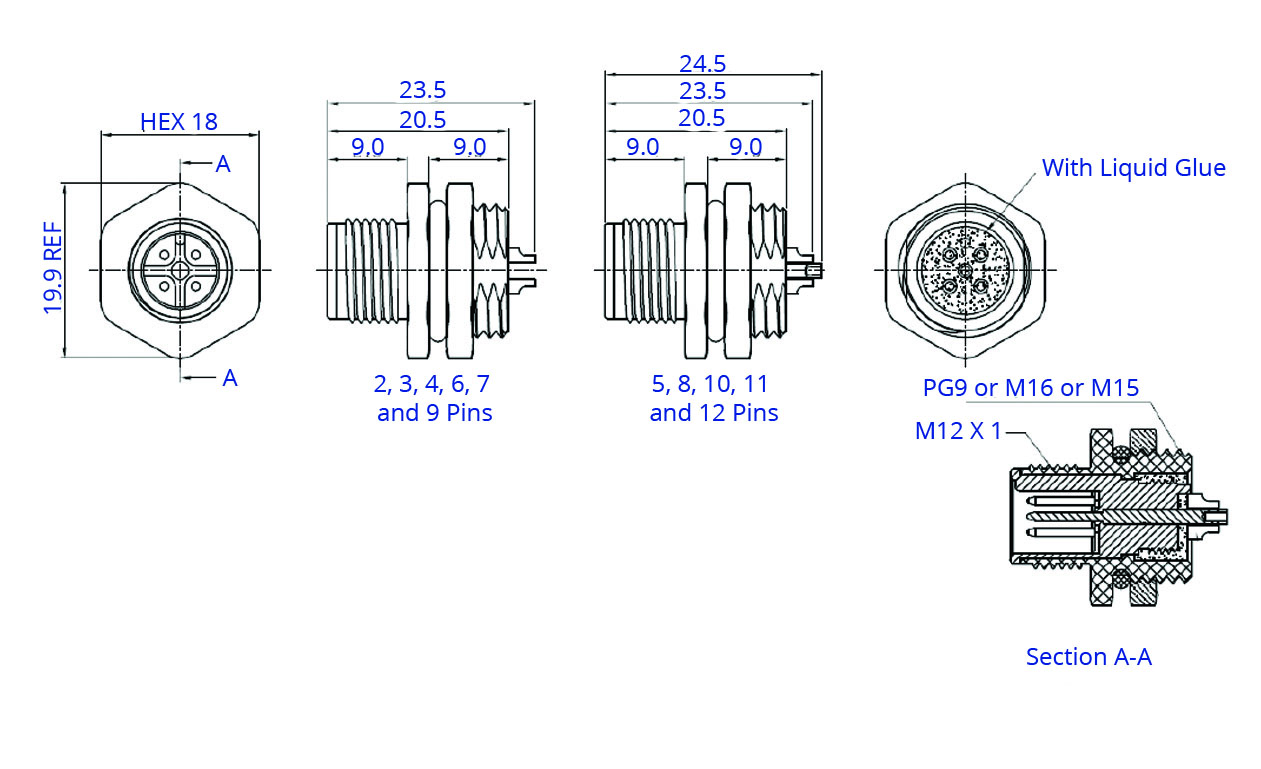

CC12-XXP-RX-PMX drawing

CC12-XXP-RX-PMX – M12 Rear Fastening Plug (A and D Code)

£0.00

The CC12-XXP-RX-PMX is a M12 circular plug connector which is available with 2 to 12 pin options in an A and D coding and has a rear panel fastening. The connector features solder buckets to the rear for cable mounting. The connector is available as a stand alone unit or as part of a standard […]

SKU: CC12-XXP-RX-PMX
Category: ,
Tags: , , ,

Description

The CC12-XXP-RX-PMX is a M12 circular plug connector which is available with 2 to 12 pin options in an A and D coding and has a rear panel fastening. The connector features solder buckets to the rear for cable mounting. The connector is available as a stand alone unit or as part of a standard ready made cable assembly as part number SCA12-XXPRXX-XXXX or a bespoke cable assembly with other terminations completing the other end. The connector has an IP67 waterproof rating.

Features

  • Solder buckets for cable mounting
  • Rear Fastening
  • Available in A  and D coding
  • 2 to 12 Pins
