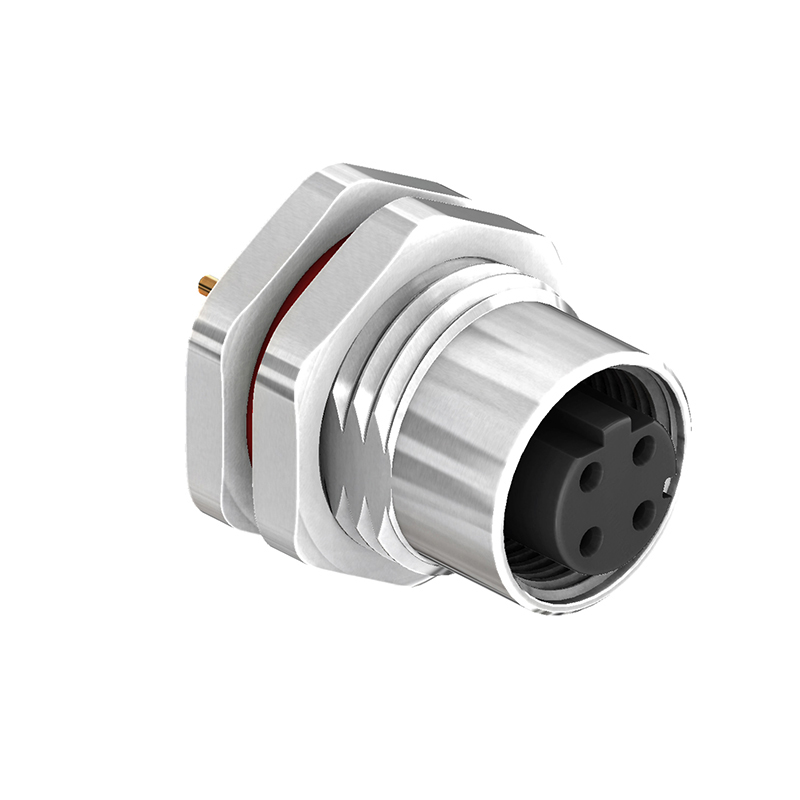

CC12-04S-FD07-PB1 M12 Circular Connector D Code Panel Mount PCB Type Front Fastened Socket

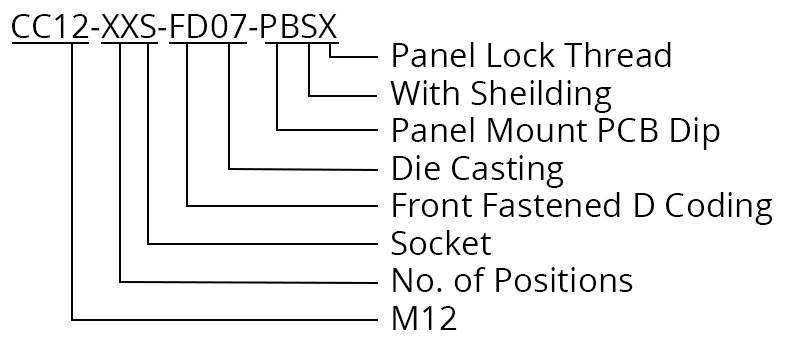

CC12-XXS-FD07-PBSX talking dog

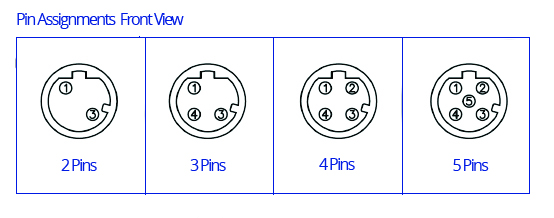

CC12-XXS-FD07-PBSX pin

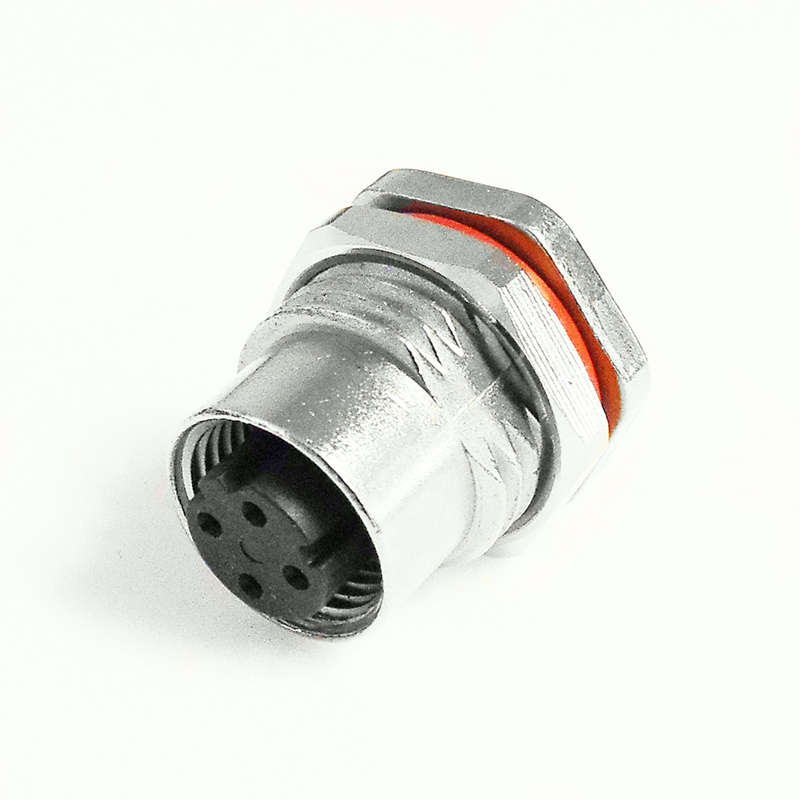

CC12-04S-FD07-PBS2mai

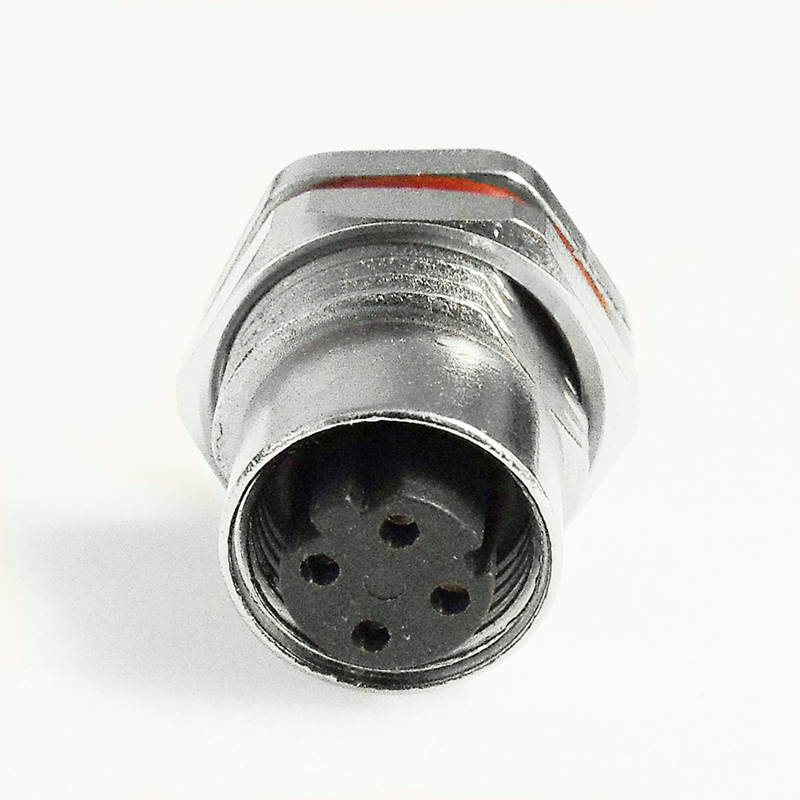

CC12-04S-FD07-PBS2front

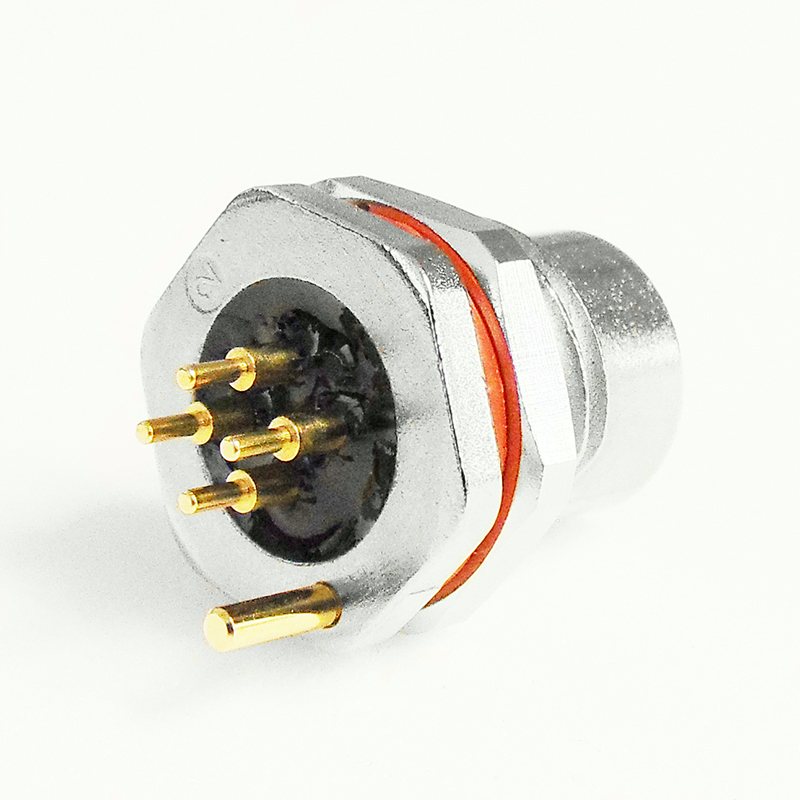

CC12-04S-FD07-PBS2rear

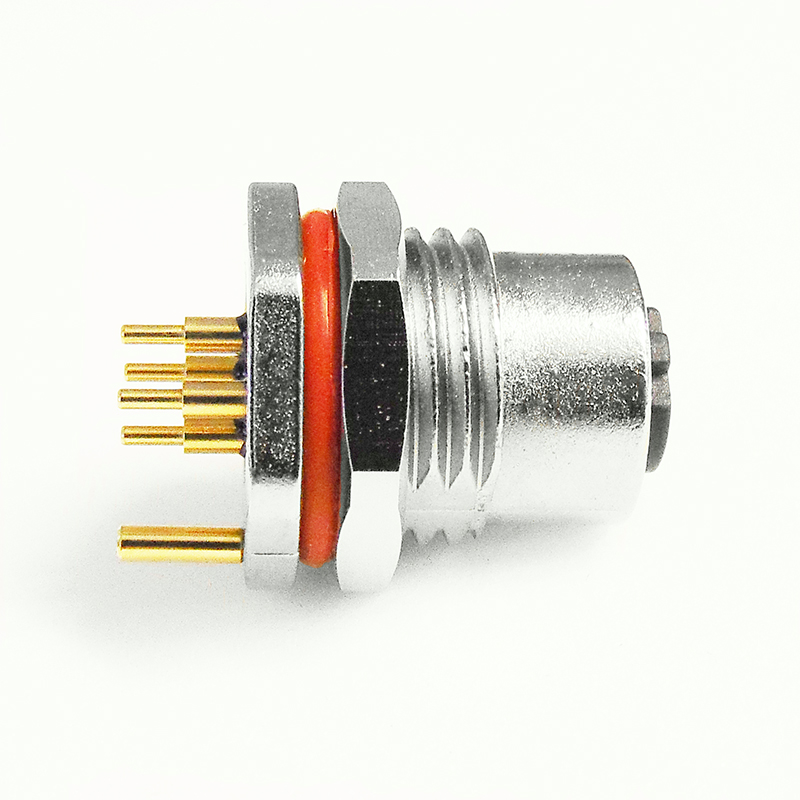

CC12-04S-FD07-PBS2side

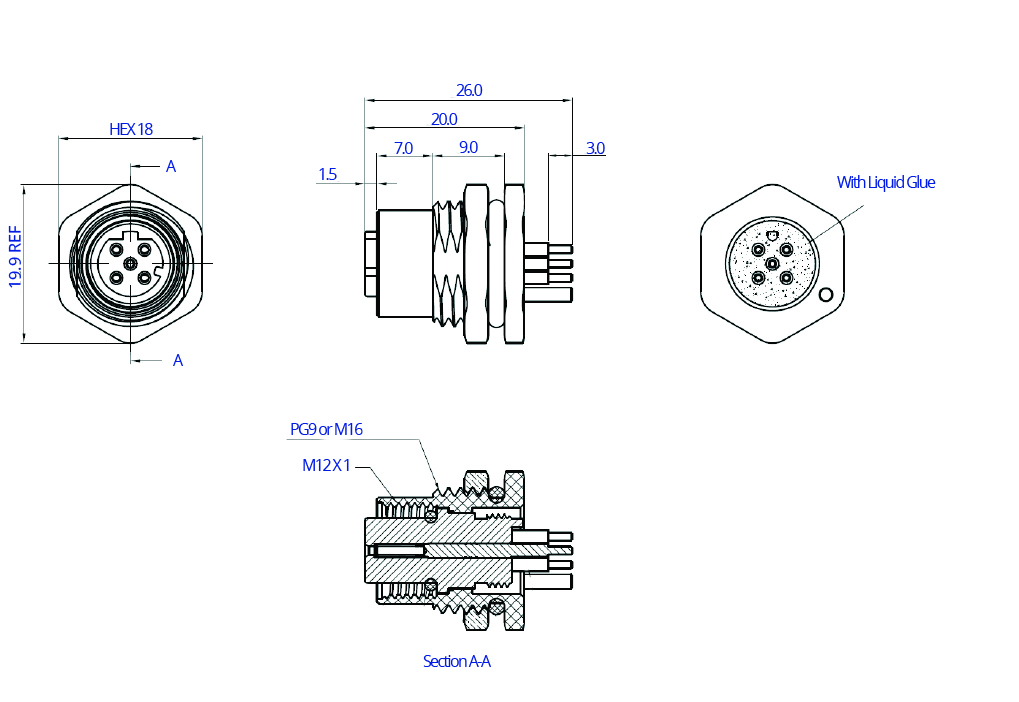

CC12-XXS-FD07-PBSX drawing

CC12-XXS-FD07-PBSX – M12 Front Fastening Shielded Die Cast Socket (D Code)

£0.00

The CC12-XXS-FD07-PBSX is an M12 circular connector which is available with 2 to 5 pins and a shielding pin in a D coding. The connector features straight pins to the rear for mounting directly to a PCB. These connectors can be used in harsh environments and have an IP67 waterproof rating. The M12 size lends […]

SKU: CC12-XXS-FD07-PBSX
Category: ,
Tags: , , ,

Description

The CC12-XXS-FD07-PBSX is an M12 circular connector which is available with 2 to 5 pins and a shielding pin in a D coding. The connector features straight pins to the rear for mounting directly to a PCB. These connectors can be used in harsh environments and have an IP67 waterproof rating. The M12 size lends itself as a solution for power or signal solution for factory automation, agricultural applications, robotics and transportation.

Features

  • Straight pins to mount directly onto a PCB
  • Shielding Pin
  • Available in D coding
  • 2 to 5 Pins
  • Offering speeds up to 10Gbps
