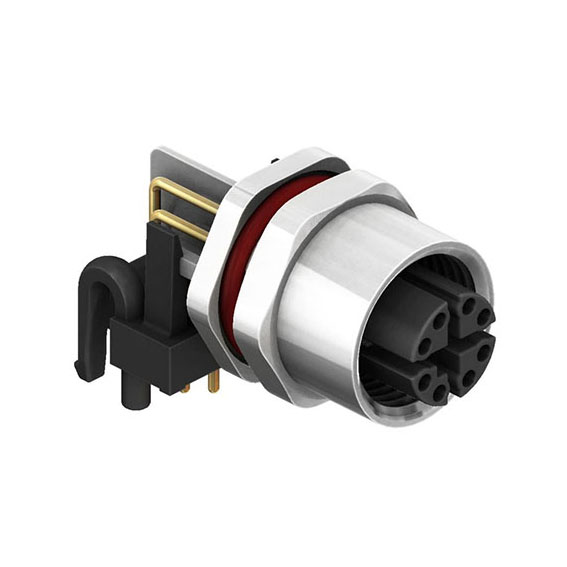

CC12R-08S-FX-PBS M12 Circular Connector X Code Panel Mount Right Angle PCB Type Front Fastened Socket

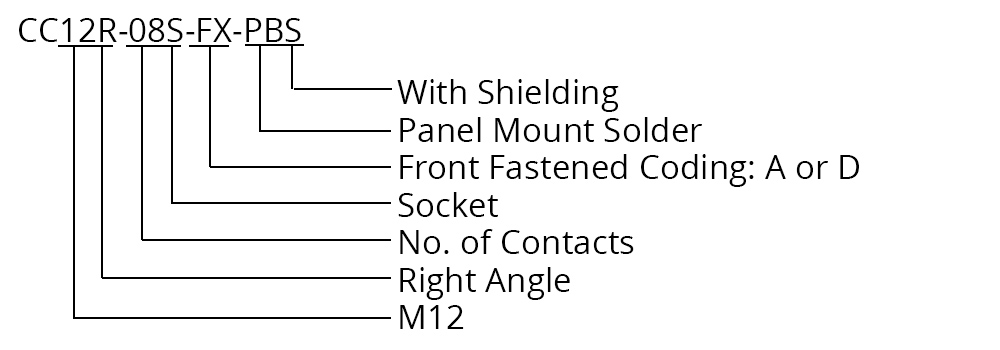

CC12R-08S-FX-PBS talking dog

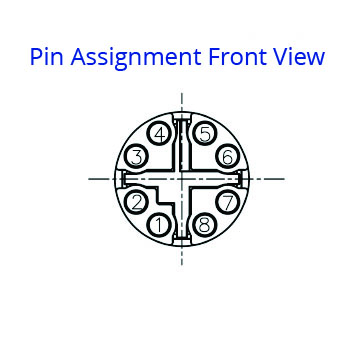

CC12R-08S-FX-PBS pin

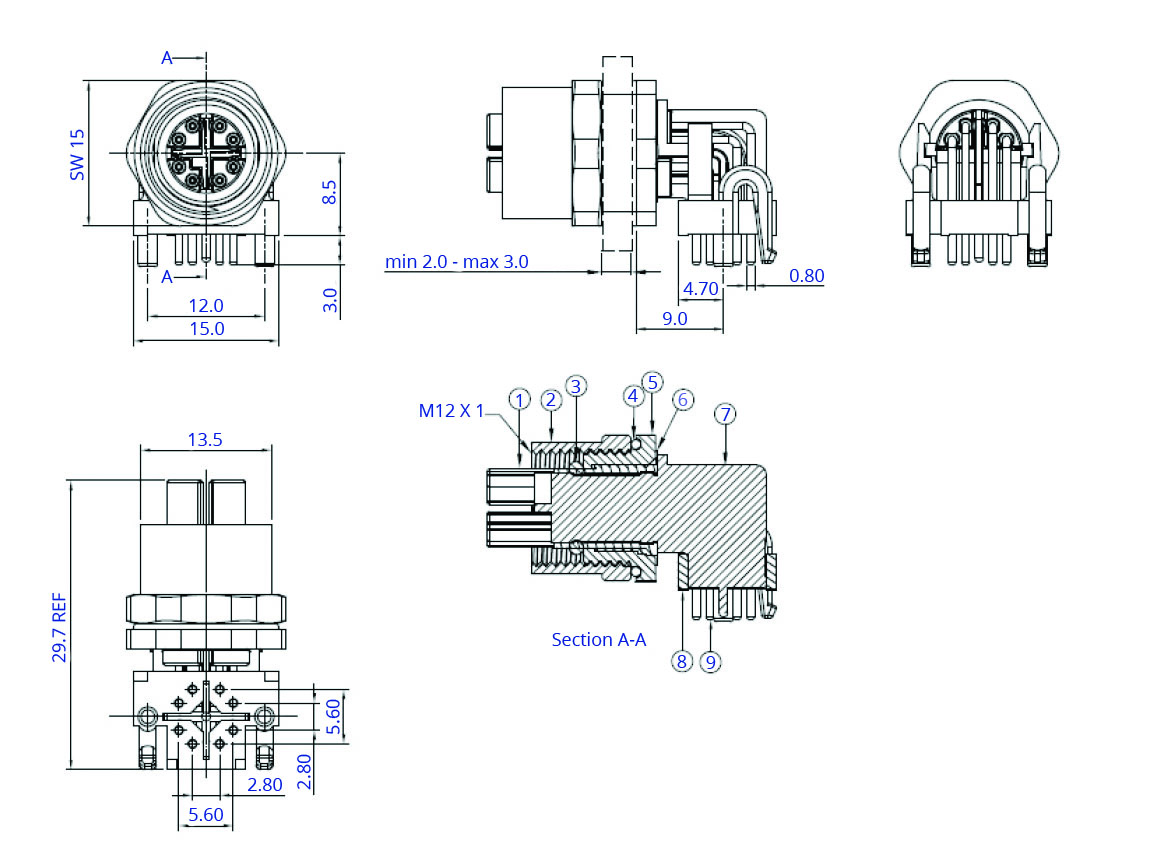

CC12R-08S-FX-PBS drawing

CC12R-08S-FX-PBS – M12 Right Angle Shielded Socket (X Code)

£0.00

The CC12-08S-FX-PBS is a right angle M12 circular socket designed for mounting directly onto a PCB. It is available in an X coding with 8 pins with shielding. The connector has integrated PCB support points for holding into the board for precise location prior to soldering. The connectors have a front fastening nut for mounting […]

SKU: CC12R-08S-FX-PBS
Category: ,
Tags: , , ,

Description

The CC12-08S-FX-PBS is a right angle M12 circular socket designed for mounting directly onto a PCB. It is available in an X coding with 8 pins with shielding. The connector has integrated PCB support points for holding into the board for precise location prior to soldering. The connectors have a front fastening nut for mounting onto an equipment panel of between 2 and 3mm in thickness.

Features

  • Right angle to mount directly onto a PCB
  • Available in X coding
  • 8 Pins
  • For panel thicknesses of 2-3mm
  • Offering speeds up to 10Gbps
