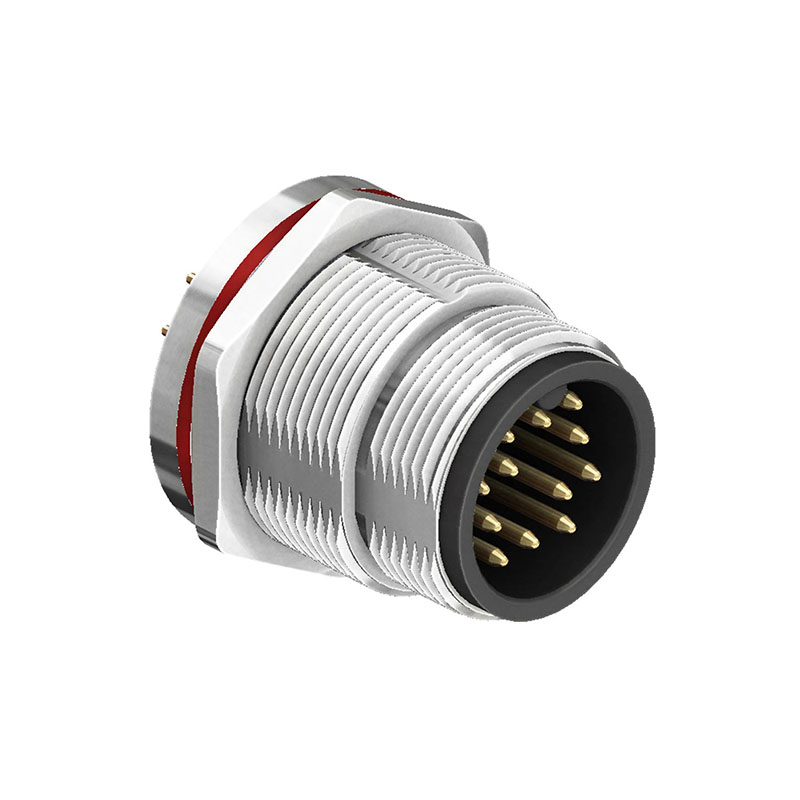

CC16-XXP-FA-PB90XX M16 Circular Connector A Code Panel Mount PCB Type Front Fastend Plug
CC16-XXP-FA-PB90XX talking dog

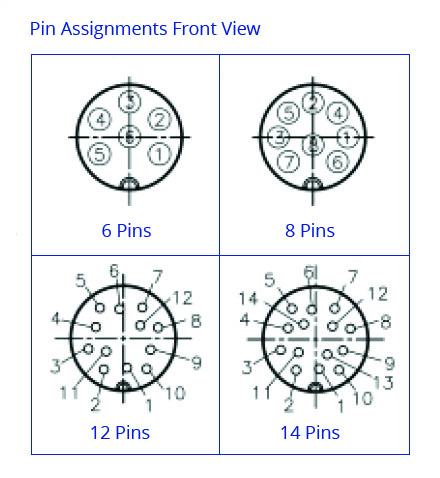

CC16-XXP-FA-PB90XX pin

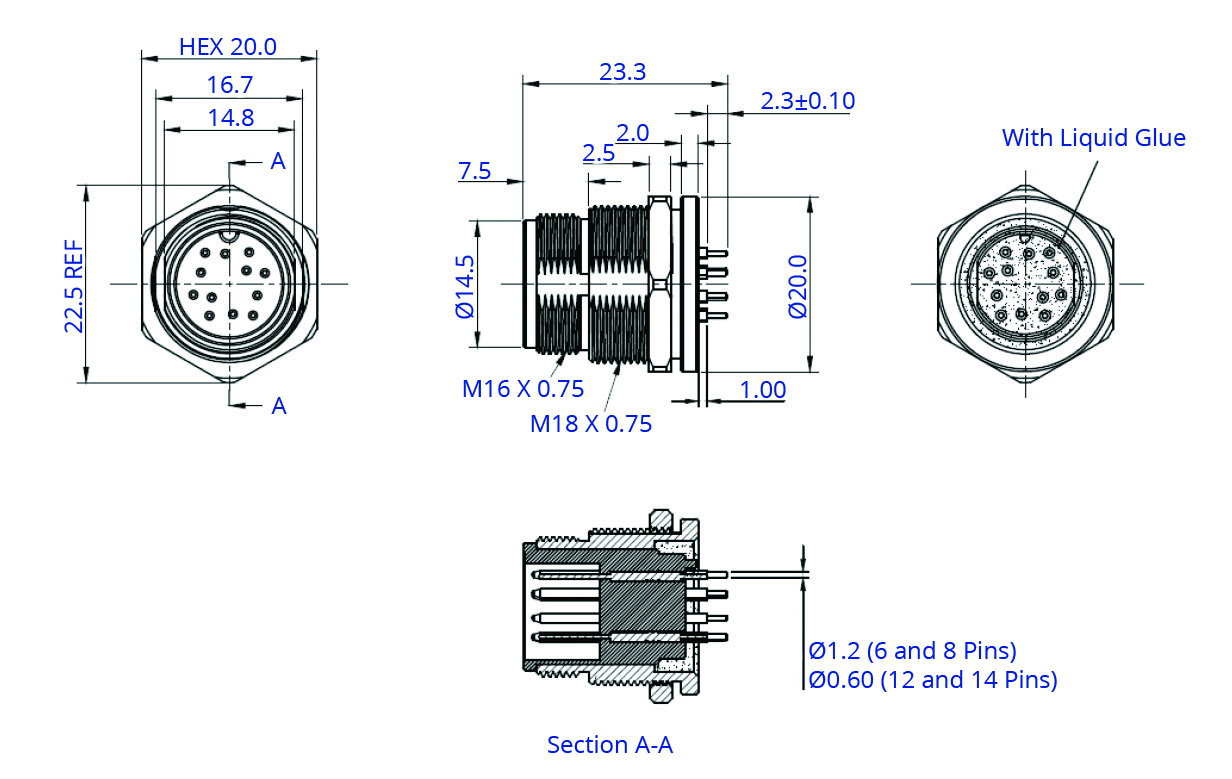

CC16-XXP-FA-PB90XX drawing

CC16-XXP-FA-PB – M16 Front Fastening Plug (A Code)

£0.00

The CC16-XXP-FA-PB9 is a M16 circular plug connector which is available with 6, 8, 12 and 14 pin options in an A. The connector features straight pins to the rear for mounting directly to a PCB. The M16 connectors offer a IP67 waterproof rating and is an ideal solution for ensuring that power and signal […]

SKU: CC16-XXP-FA-PB
Category: ,
Tags: , ,

Description

The CC16-XXP-FA-PB9 is a M16 circular plug connector which is available with 6, 8, 12 and 14 pin options in an A. The connector features straight pins to the rear for mounting directly to a PCB. The M16 connectors offer a IP67 waterproof rating and is an ideal solution for ensuring that power and signal connections are not compromised in harsh environments and industrial applications.

Features

  • Straight pins to mount directly onto a PCB
  • Available in A coding
  • 6, 8, 12 and14 Pins
