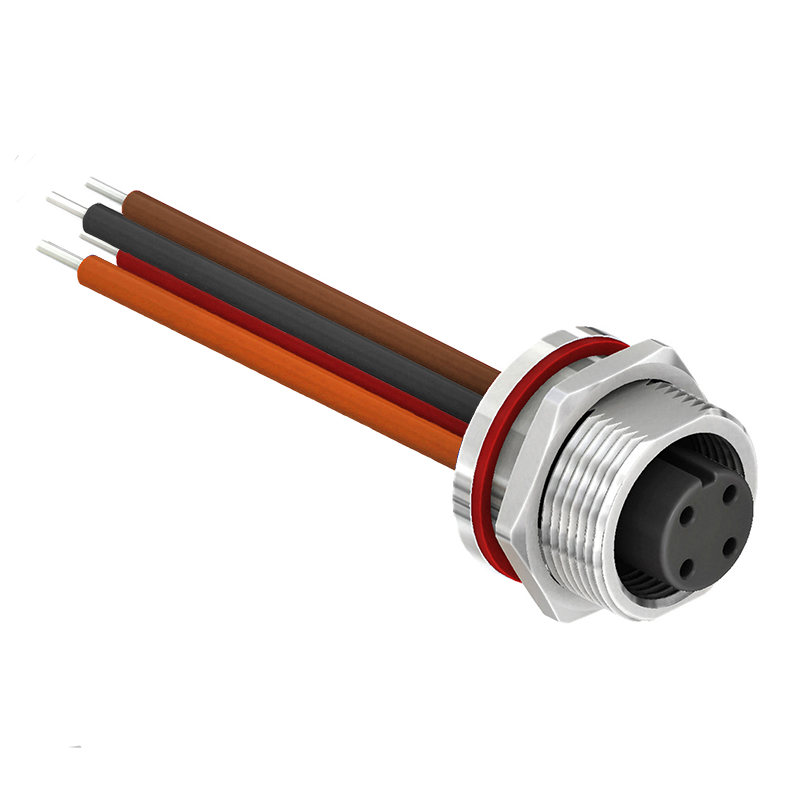

SCA16-XXSFAX-XXXX – M16 Front Fastening Socket Cable Assembly (A Code)

Description

The SCA16-XXSFAX-XXXX is an M16 socket cable assembly which comes as standard with a stub end. The front fastening connector is available in an A coding and with 2 to 8 pin options. The

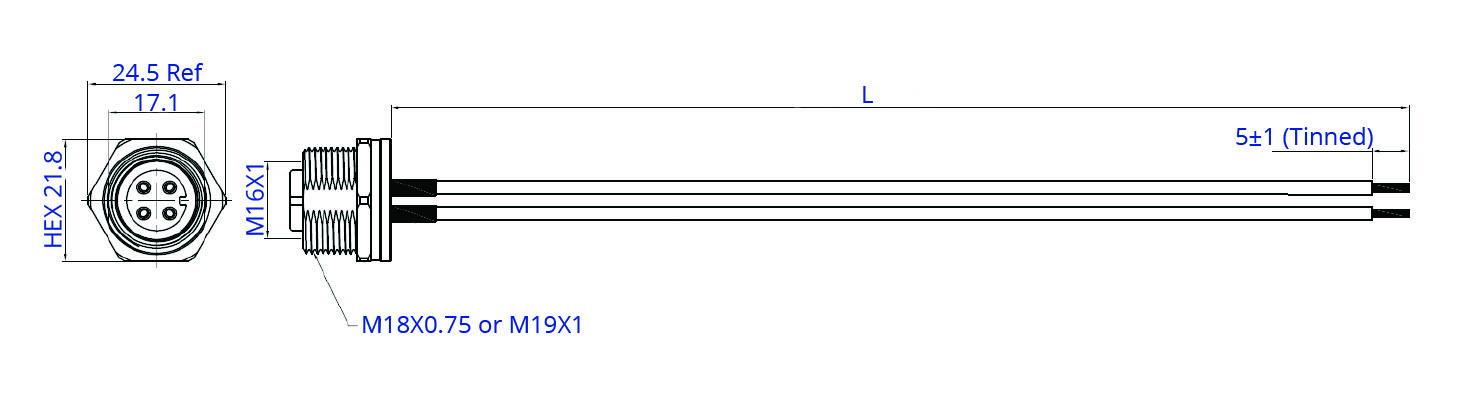

connector is supplied with either an M18 or M19 nut, depending on the number of pins. The assembly can be supplied to your required length or can be made into a bespoke assembly with terminations of your choice to the other end.

Features

• Can be used for power or signal pins
• IP67 Waterproof rating
• Suitable for a wide range of applications
• Available with a choice of nut size, M18 or M19
• Can be supplied as a bespoke cable assembly with or without terminations to the other end.
