CEI Ltd

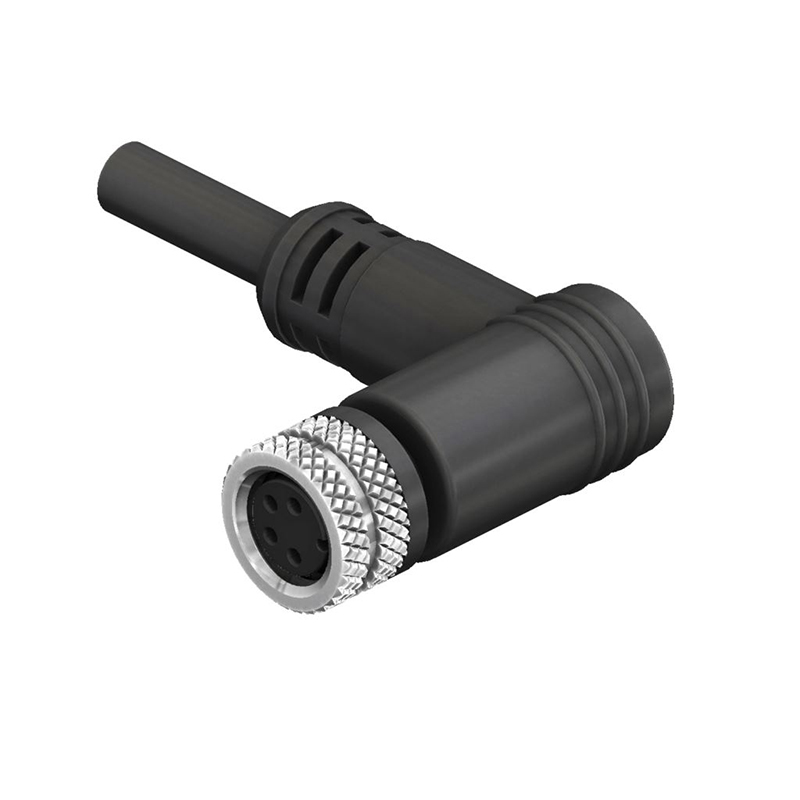

SCM08-XXSRX M8 Circular Connector A and B Code Over-moulding Cables Right Angle Socket
SCM08-04SAR-D3000main
SCM08-03SAR-D3000side
SCM08-XXSRX talking dog
SCM08-XXSRX-XXXX pin
SCM08-XXSRX-XXXX drawing

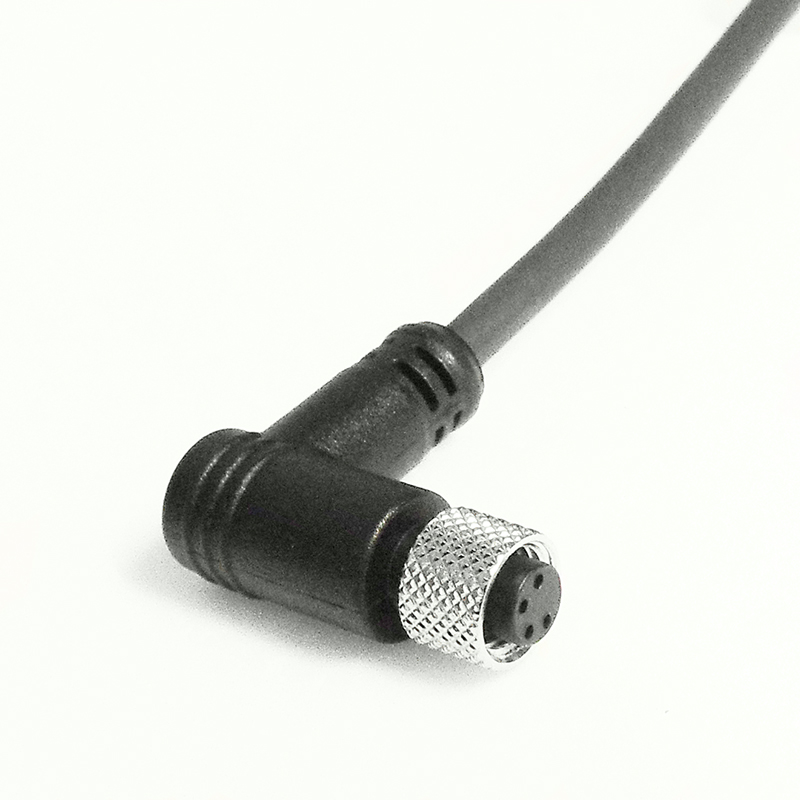

SCM08-XXSXR-XXXX – M8 Right Angle Over-moulded Socket Cable Assembly (A or B Code)

£0.00

The SCM08-XXSXR-XXXX is an M8 right angle over-moulded socket cable assembly with a stub end for completion with a termination of your choice. The M8 socket is available in an A or B coding with 2 to 8 pin options. The cable is available in standard lengths of 0.5, 1, 1.5 and 2 metres, but […]

SKU: SCM08-XXSXR-XXXX
Category: ,
Tags: , ,

Description

The SCM08-XXSXR-XXXX is an M8 right angle over-moulded socket cable assembly with a stub end for completion with a termination of your choice. The M8 socket is available in an A or B coding with 2 to 8 pin options. The cable is available in standard lengths of 0.5, 1, 1.5 and 2 metres, but we can offer a bespoke cable
assembly to any length and with any termination.

Features

  • Can be used for Power or signal pins
  • IP67 Waterproof rating
  • Suitable for a wide range of applications
  • Available in standard lengths of 0.5, 1, 1.5 and 2 metres.
  • Can be supplied as a bespoke cable assembly with or without terminations to the other end.
