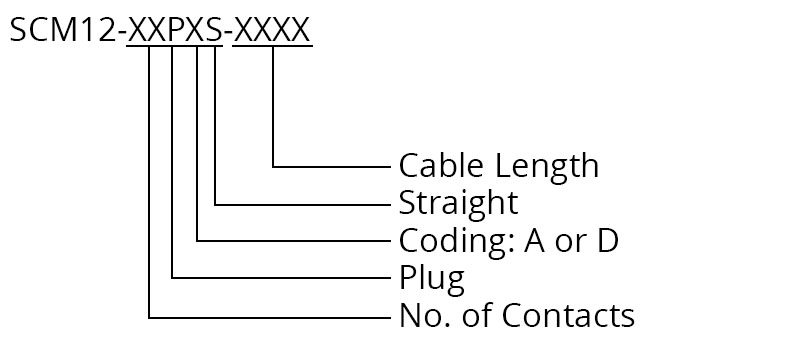

SCM12-XXPXS-XXXX – M12 Over-moulded Plug Cable Assembly (A or D Code)

Description

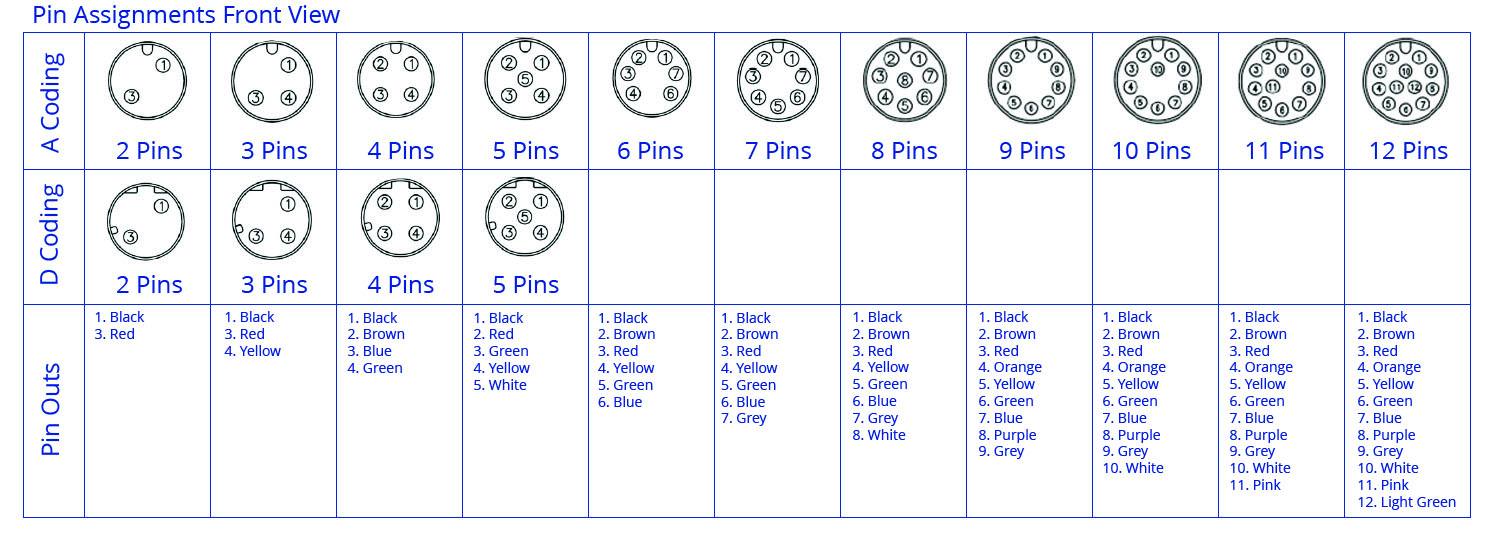

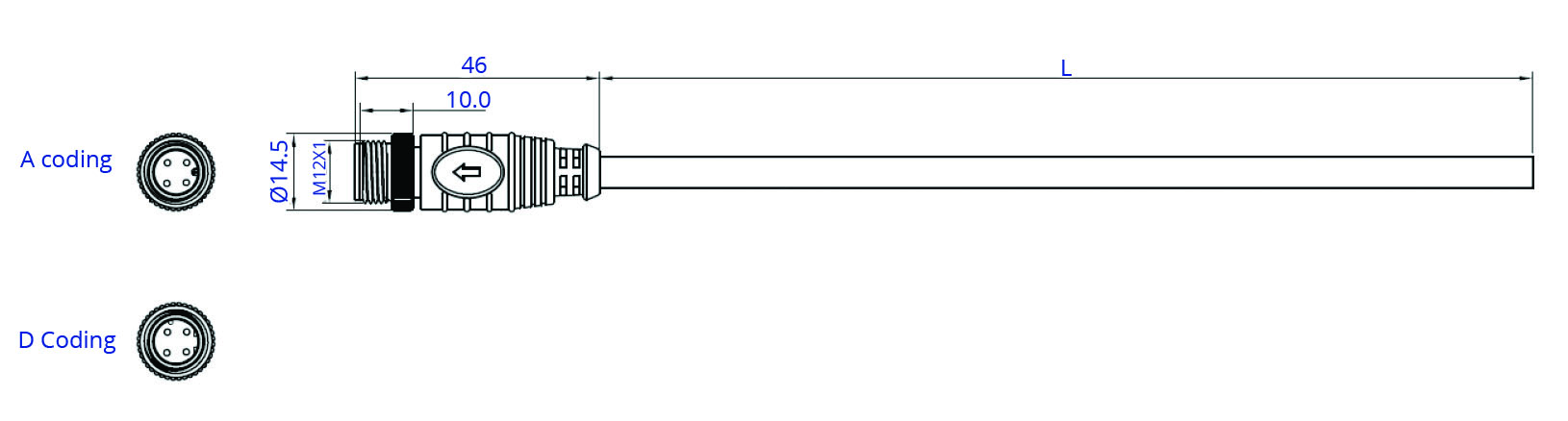

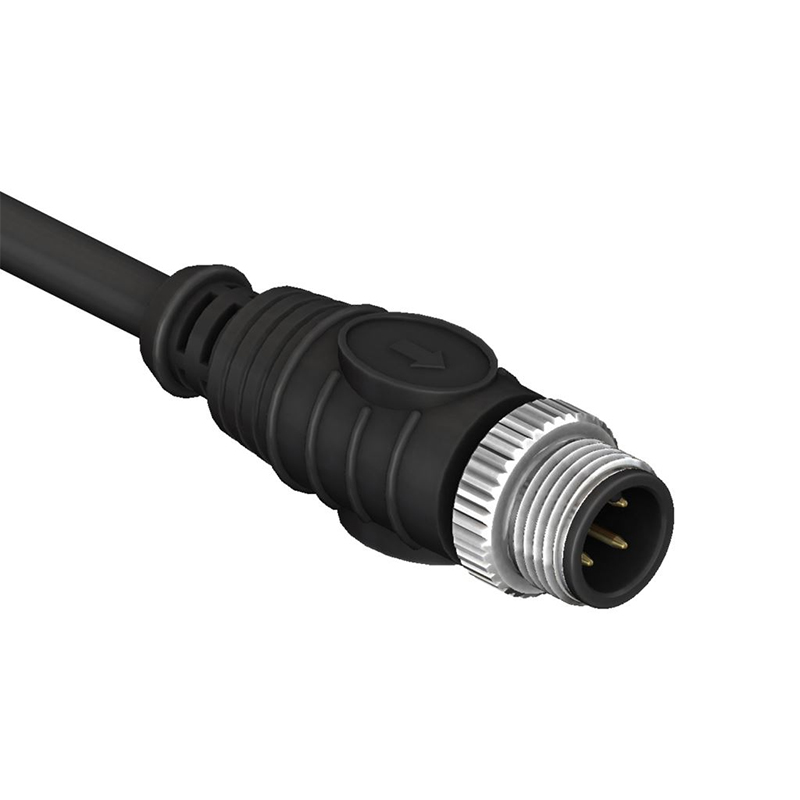

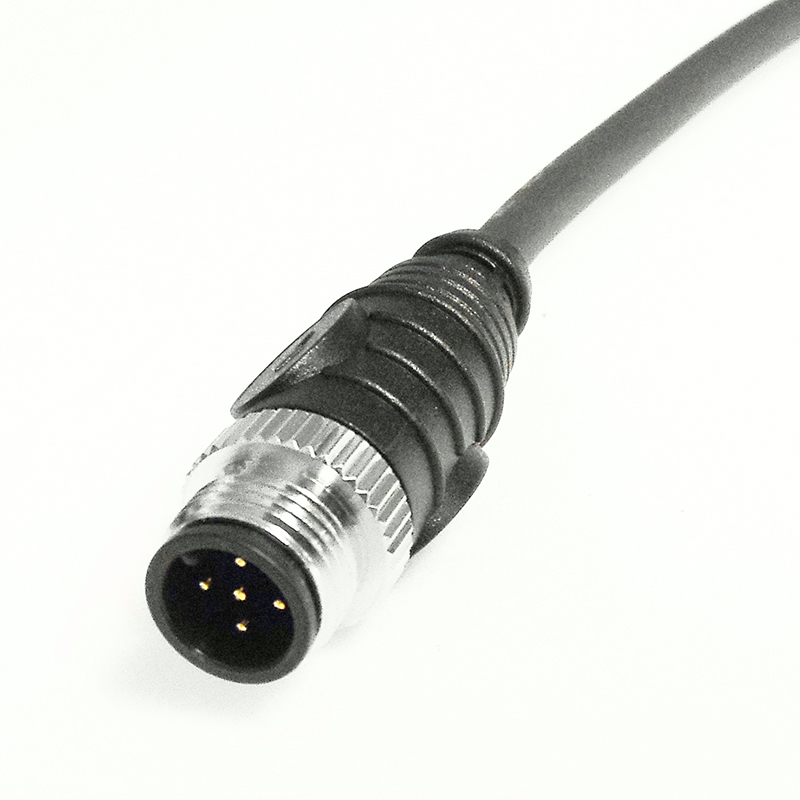

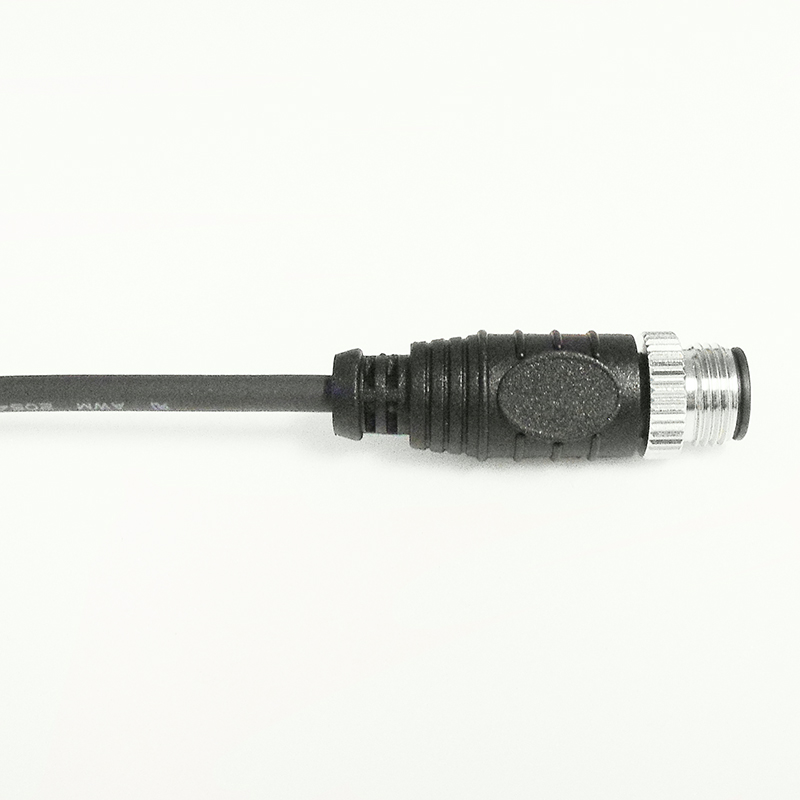

The SCM12-XXPXS-XXXX is an M12 over-moulded plug cable assembly with a stub end for completion with a termination of your choice. The M12 plug is available in an A or D coding with 2 to 12 pin options. The assembly can be supplied to your required length or can be made into a bespoke assembly with terminations of your choice to the other end.

Features

• Can be used for power or signal pins
• IP67 Waterproof rating
• Suitable for a wide range of applications
• Can be supplied as a bespoke cable assembly with or without terminations to the other end.
