XPT-D005-NGAF – Micro BNC Cable Terminated Plug for 12G Applications

Description

Our range of 12GHz Precision Micro BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name while meeting the JIIA CoaXPress specification. These high-performance connectors allow you to achieve a 12GHz channel in one single connection. The Micro BNC connectors are mateable with any standard Micro BNC connector, but optimum performance is achieved when PCB mounted styles are interfaced with these Cambridge Connectors 12GHz Micro BNC plugs.

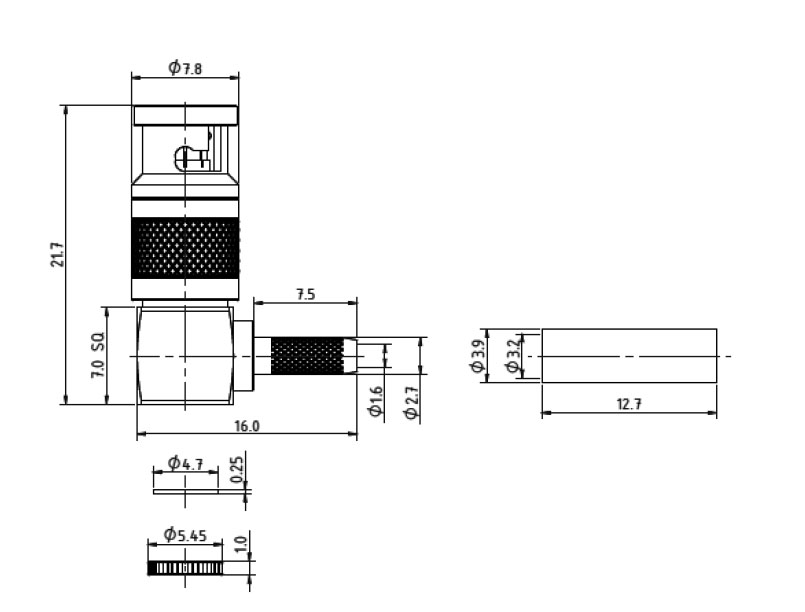

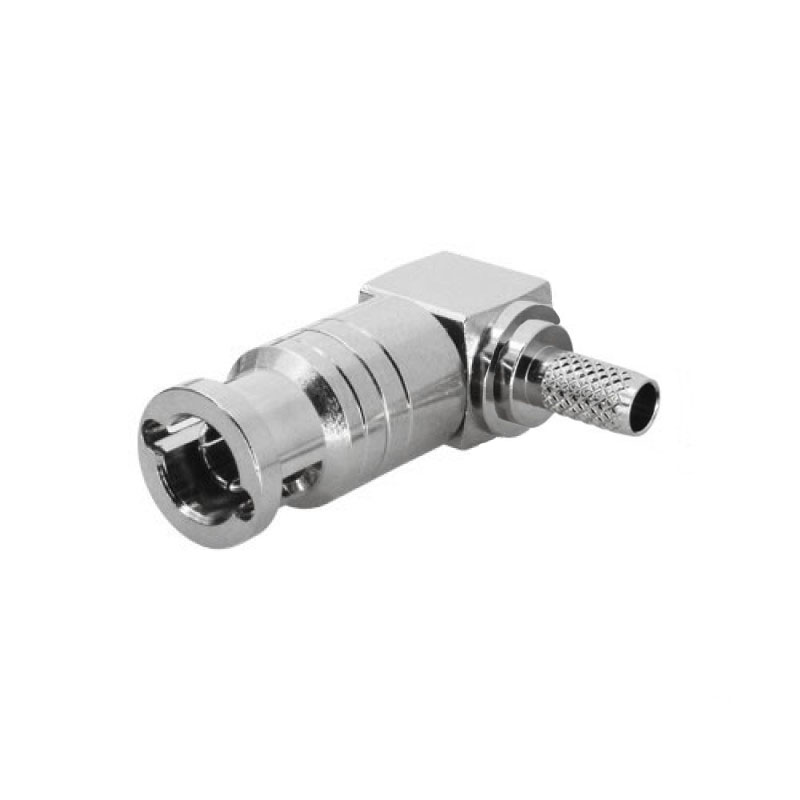

The XPT-D005-NGAF connector is a cable mounted right angle Micro BNC plug, designed for use with 12GHz cable (such as RG179 and RG187).

The following tools are recommended for use with this connector:
XPT-D005-NGAF = TLG 116
