C-SX-095 – Right Angle PCB Mounting BNC Connector with Pathfinder Light Pipe

Name: C-SX-095 - Right Angle PCB Mounting BNC Connector with Pathfinder Light Pipe
SKU: C-SX-095
Availability: InStock

£0.00

The C-SX-095 precision 75Ω BNC Connector is a right angle mounted PCB connector with a selection of different leg lengths available. It also features PathfinderTM light pipe technology which is located on the bottom of the connector. With a centre line of 4mm above the board, its low profile permits closer packing densities of daughter […]

SKU: C-SX-095

Category: All Products, BNC, Coaxial Connectors

Tags: 3GHz, BNC, Right Angled

Description

Description

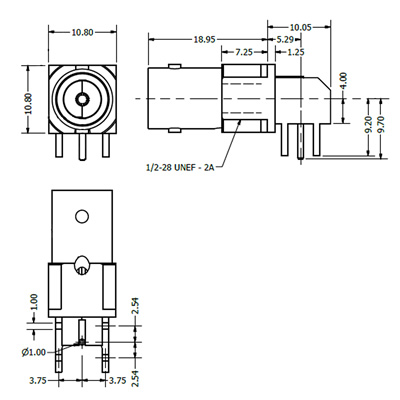

The C-SX-095 precision 75Ω BNC Connector is a right angle mounted PCB connector with a selection of different leg lengths available. It also features PathfinderTM light pipe technology which is located on the bottom of the connector. With a centre line of 4mm above the board, its low profile permits closer packing densities of daughter boards, which allows reduction in the bulk of routing and switching equipment.

This is not supplied with nuts or washers.
