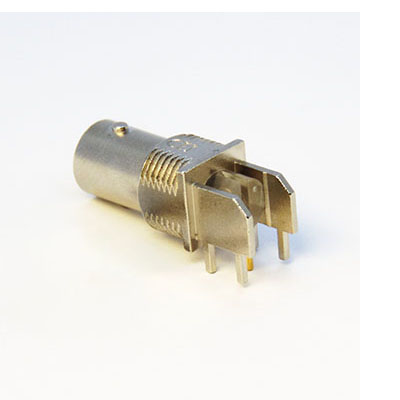

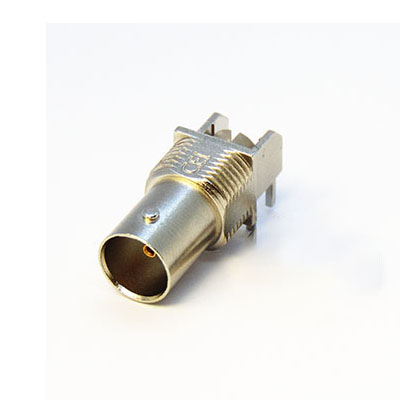

C-SX-101 – Right Angle PCB Mounting BNC Connector with Pathfinder Light Pipe

Description

This precision 75Ω BNC Connector is a right angle mounted PCB connector with a selection of different leg lengths available. It also features Pathfinder ^TM light pipe technology which aids port identification. With a centre line of 4mm above the board, its low profile permits closer packing densities of daughter boards, which allows reduction in the bulk of routing and switching equipment.

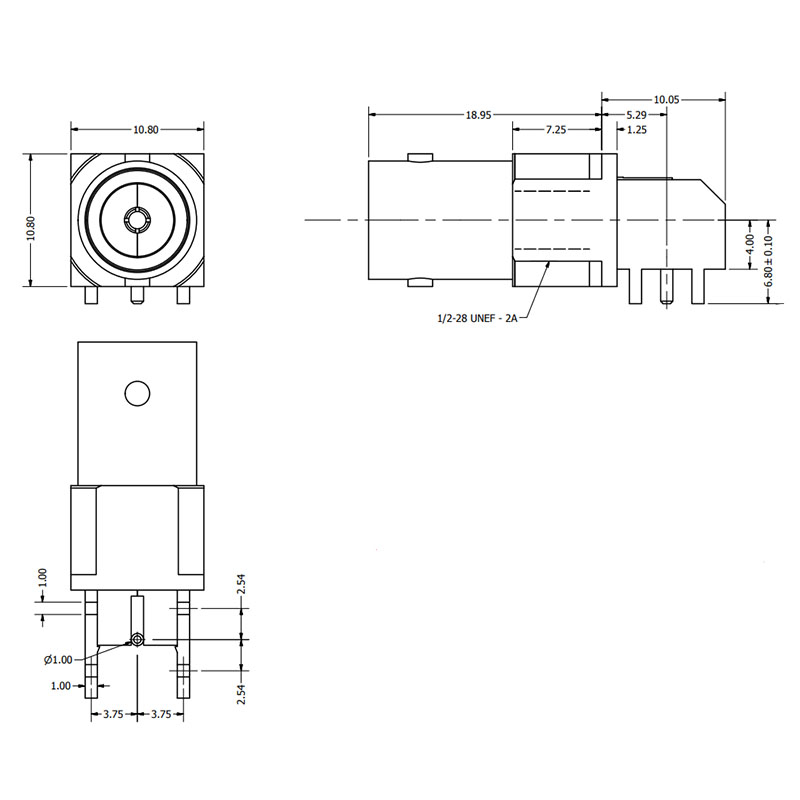

 The C-SX-101 has a leg length (La) of 2.8mm and a centre pin length (Lb) of 6.8mm

The connector is not supplied with nut and washer and other materials such as gold plating are available.
