C-SX-108G – PCB Surface Mount BNC Connector with Pathfinder Light Pipe
£0.00
This precision 75Ω BNC Connector is a right angle mounted PCB connector for surface mount applications. It also features PathfinderTM light pipe technology which aids port identification. With a centre line of 4mm above the board, its low profile permits closer packing densities of daughter boards, which allows reduction in the bulk of routing and […]
Description
This precision 75Ω BNC Connector is a right angle mounted PCB connector for surface mount applications. It also features PathfinderTM light pipe technology which aids port identification. With a centre line of 4mm above the board, its low profile permits closer packing densities of daughter boards, which allows reduction in the bulk of routing and switching equipment.

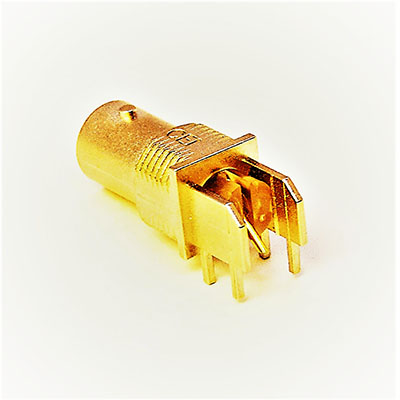

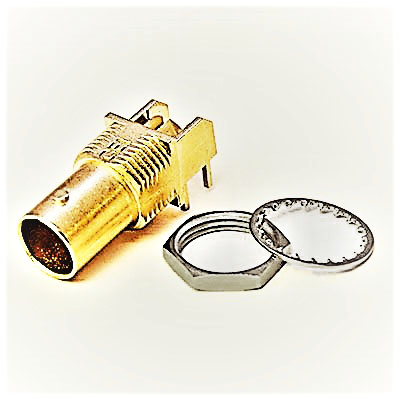

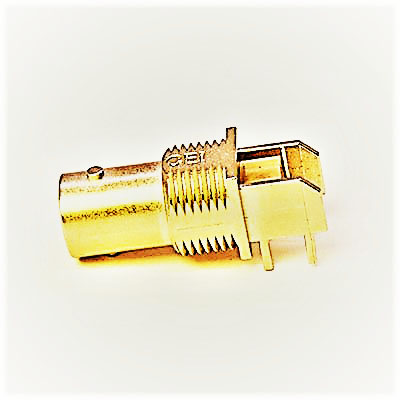

The C-SX-108G is a right angle surface mount BNC Connector. Each connector is supplied with nut and washer.
