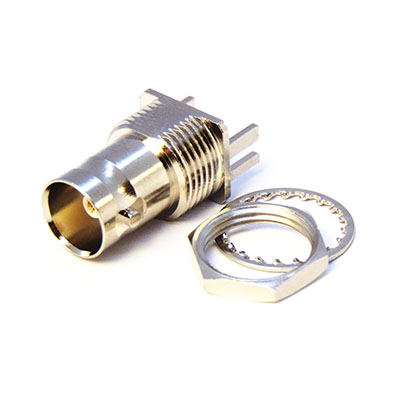

158-1 3GHz Edge Mount BNC Coaxial RF Connector

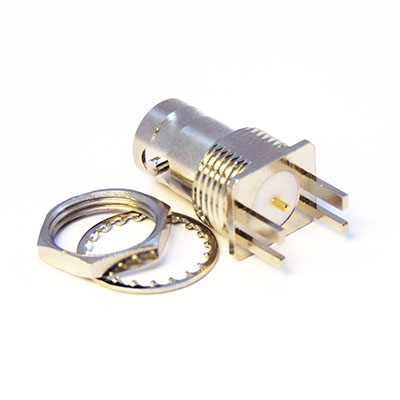

158-4 3GHz Edge Mount BNC Coaxial RF Connector

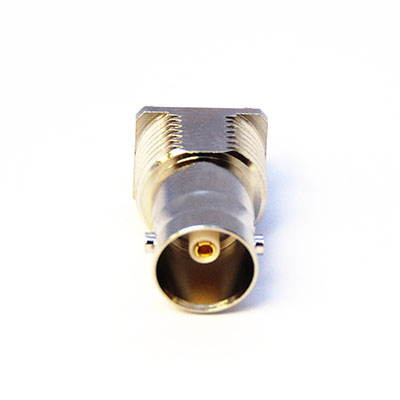

158-2 3GHz Edge Mount BNC Coaxial RF Connector

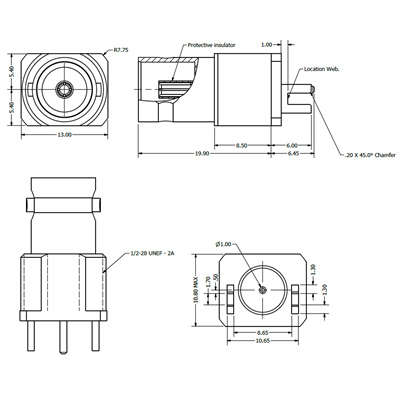

109drawing 3GHz Edge Mount BNC Coaxial RF Connector

C-SX-109 – PCB Edge mounting BNC Connector with Protective Sleeve

Name: C-SX-109 - PCB Edge mounting BNC Connector with Protective Sleeve
SKU: C-SX-109
Availability: InStock

£0.00

The C-SX-109 Precision 75Ω BNC Bulkhead is an edge mounting connector with a protective insulator sleeve around the centre contact. This connector is supplied with standard nut and washer. Slotted circular nuts available as an optional extra.

SKU: C-SX-109

Category: All Products, BNC, Coaxial Connectors

Tags: 3GHz, BNC, Edge Mounted

Description

Description

The C-SX-109 Precision 75Ω BNC Bulkhead is an edge mounting connector with a protective insulator sleeve around the centre contact. This connector is supplied with standard nut and washer. Slotted circular nuts available as an optional extra.
