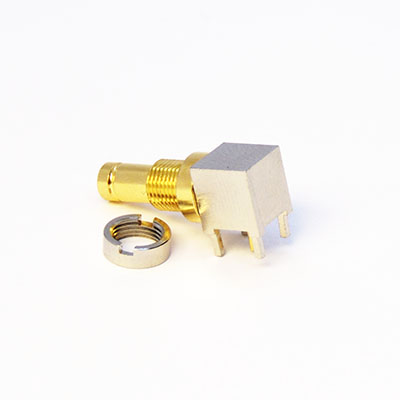

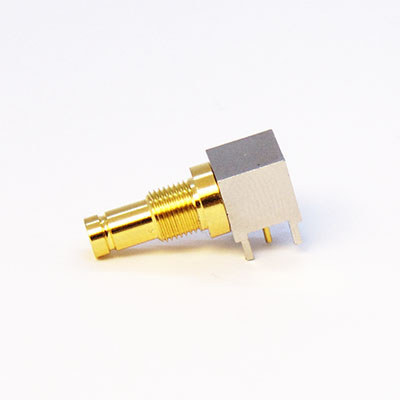

C-SX-113GN – Right Angle PCB Bulkhead Mounted Connector

Name: C-SX-113GN - Right Angle PCB Bulkhead Mounted Connector
SKU: C-SX-113GN
Availability: InStock

£0.00

The C-SX-113GN is a right angle PCB bulkhead mounted connector which conforms to the standard of SMPTE ST 2081-1, allowing bit-rates of 5.94Gbit/s over a single coaxial connection. The 8mm pitch and low profile of the connector enables double wiring densities and is optimised for use in 6G HD-SDI applications. The C-SX-113GN is supplied with […]

SKU: C-SX-113GN

Category: All Products, Coaxial Connectors, Core Range, DIN 1.0 / 2.3

Tags: 6GHz, DIN 1.0/2.3, Right Angled

Description

Description

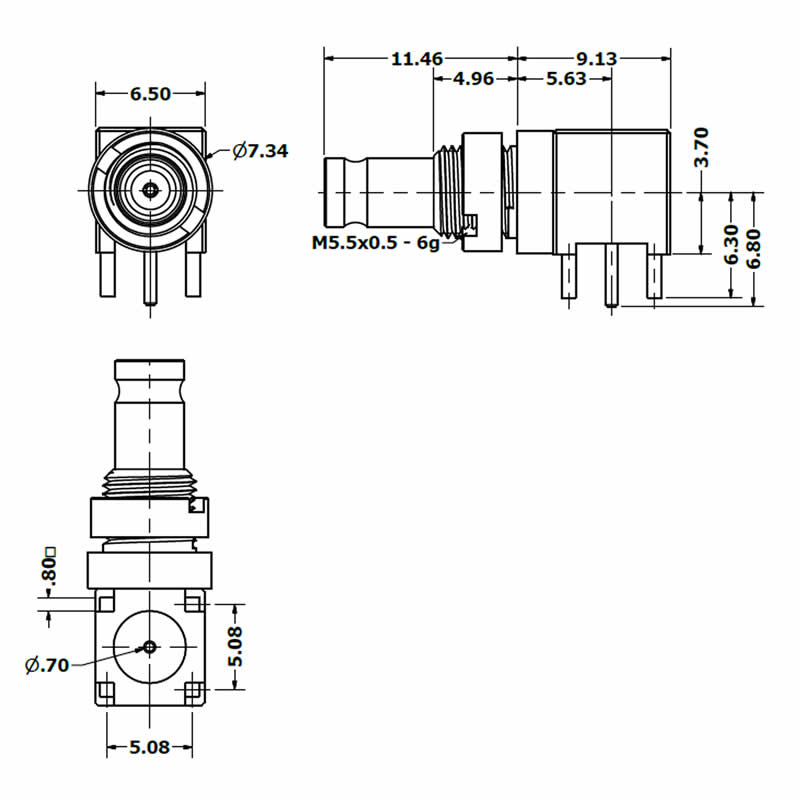

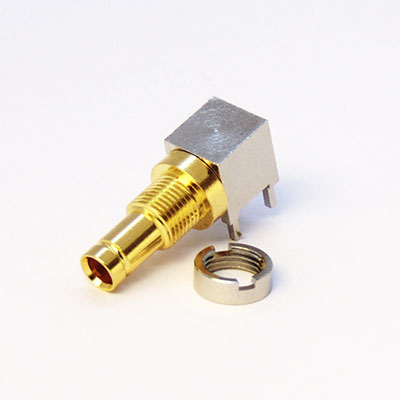

The C-SX-113GN is a right angle PCB bulkhead mounted connector which conforms to the standard of SMPTE ST 2081-1, allowing bit-rates of 5.94Gbit/s over a single coaxial connection. The 8mm pitch and low profile of the connector enables double wiring densities and is optimised for use in 6G HD-SDI applications. The C-SX-113GN is supplied with a 2.35mm deep M5 nut.
