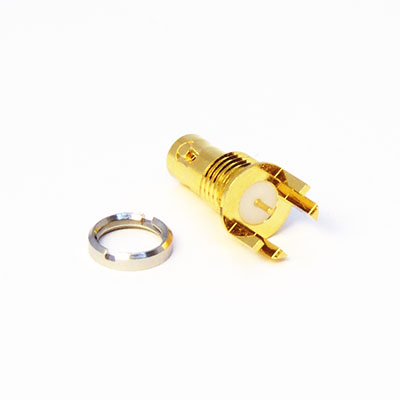

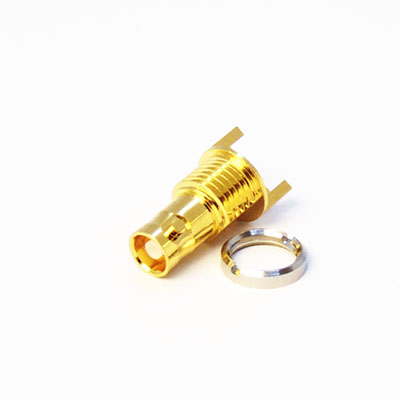

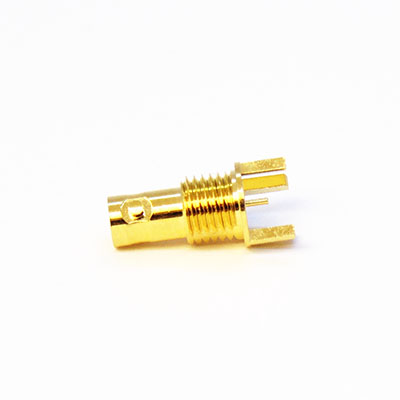

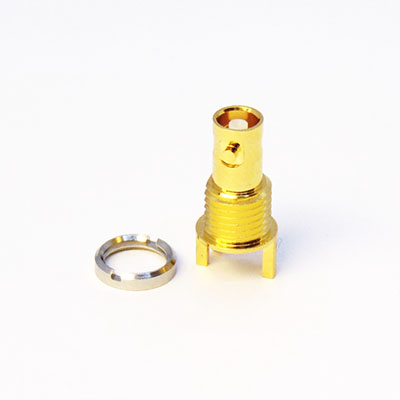

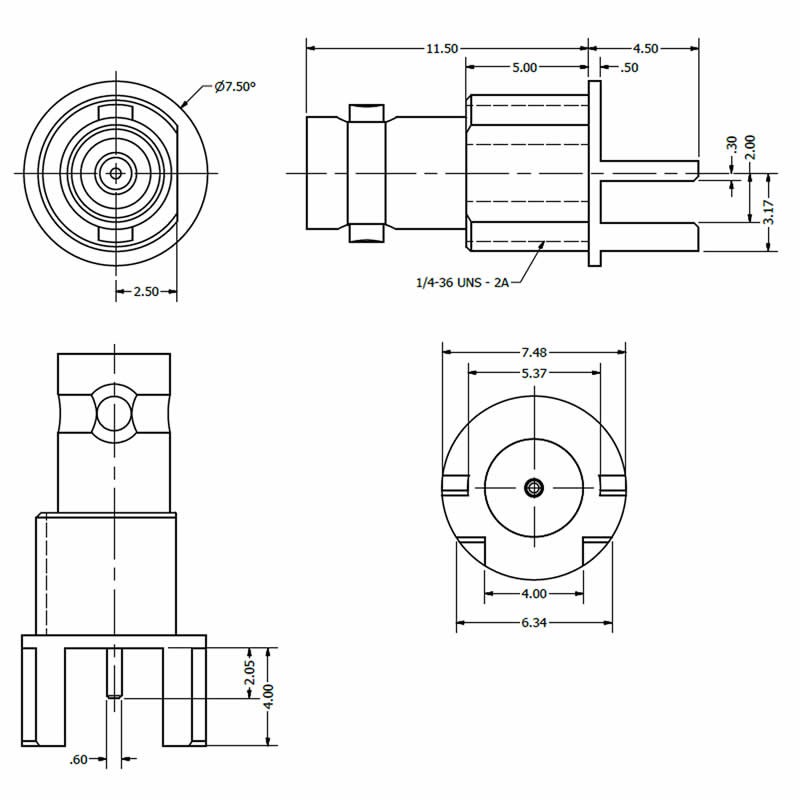

C-SX-147 – Edge Mounted Micro BNC Connector

Description

Our range of Precision Micro BNC coaxial connectors are optimised for 12GHz, 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name, while meeting the JIIA CoaXPress CXP-12 specification. These high performance connectors allow you to achieve up to 25GHz channel in one single connection. The Micro BNC connectors are mateable with any standard Micro BNC connector, but to achieve optimum performance we recommend using CEI connectors CoaxVisionTM Micro BNC Connectors in both halves.

The C-SX-147 is part of a range of connectors that have been designed with the same PCB footprint, giving a choice of connector style, which can be used on the same PCB design. Included in this edge mounted range is a 12GHz BNC connector (C-SX-220ZZ) and a 6GHz DIN 1.0/2.3 connector (C-SX-219GZZ). The connectors in this range are for PCB thicknesses of 1.6mm and the C-SX-147 is supplied with a nut. All connectors in this range are also available for other board thicknesses.
