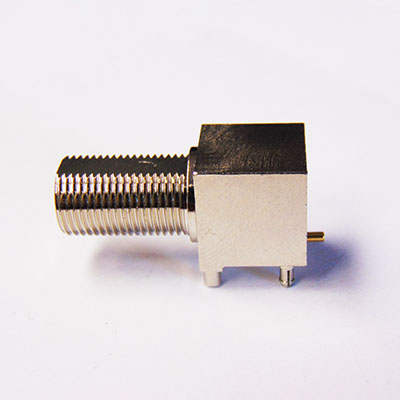

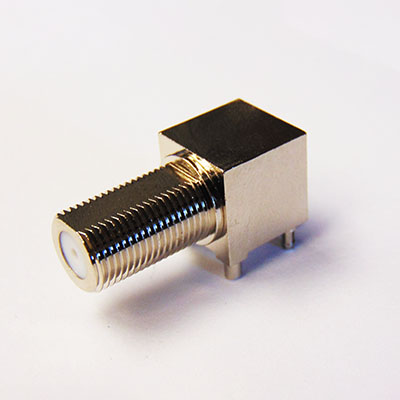

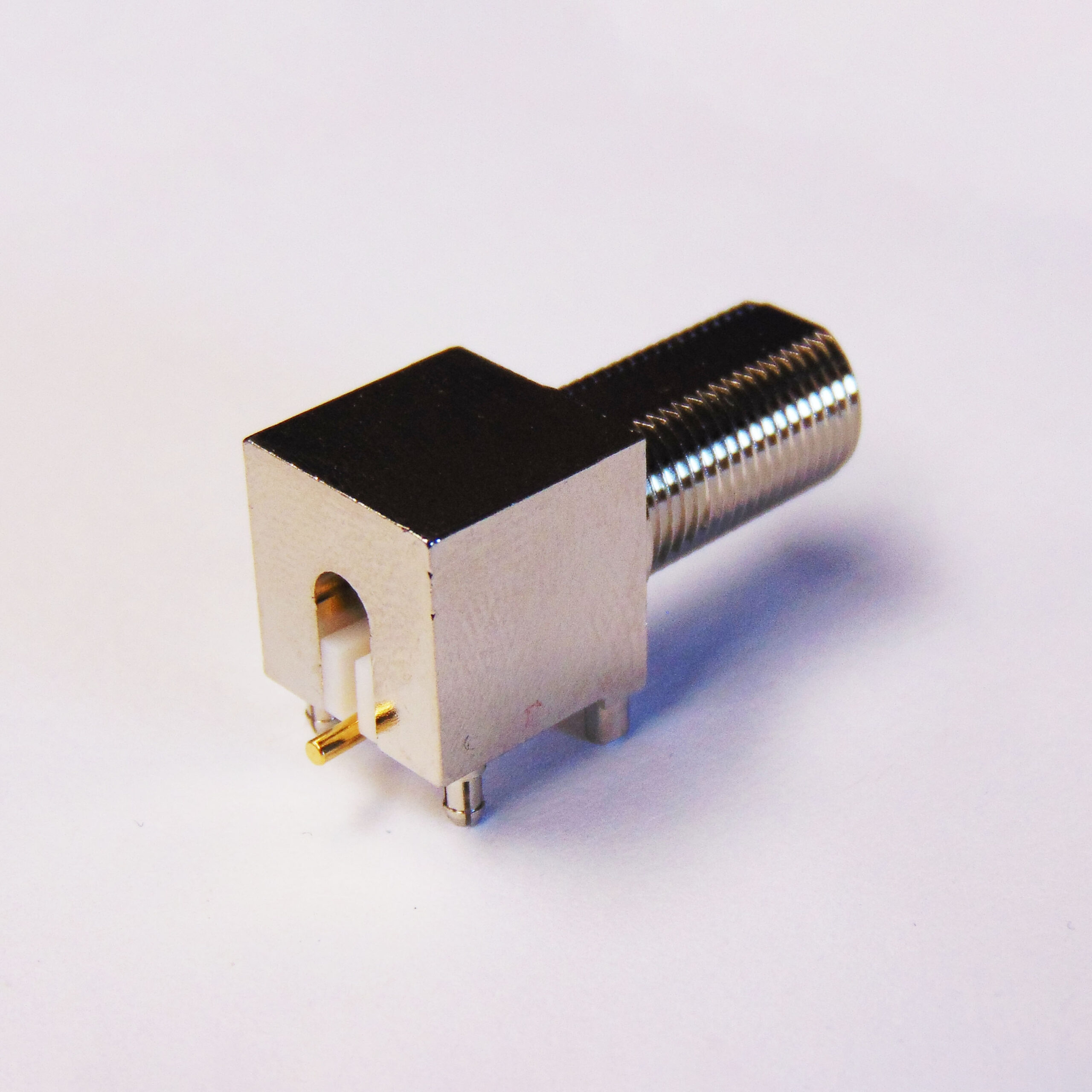

C-SX-215 – Right Angle Surface Mounting F Connector

Description

This precision 75Ω F Connector is a right-angle mounted PCB connector which is suitable for frequencies up to 6GHz. The connector is part of the 6G Coaxvision range and meets the SMPTE ST-2081 standard for 6Gbits/s over a single channel.

The C-SX-215 is a right-angled F Type connector, which is part of our Rapid ConneXions range, has been optimised for machine placement. The connector features a surface mounted pin and locking posts and is designed for a board thickness of 1.6mm. As a specialist connector design house, we can offer other board thicknesses if required.
