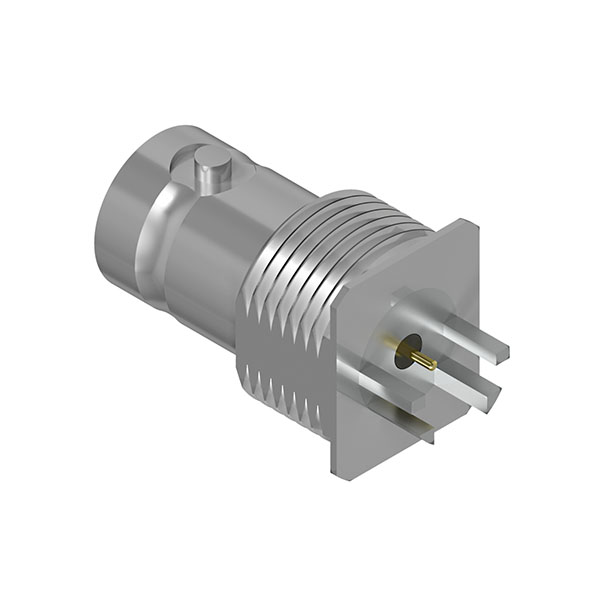

C-SX-220ZZ – Edge Mounted BNC Connector

Description

Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name, while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The BNC connectors are mateable with any standard BNC connector, but to achieve optimum performance we recommend using CEI connectors 12GHz CoaxVisionTM BNC Connectors in both halves.

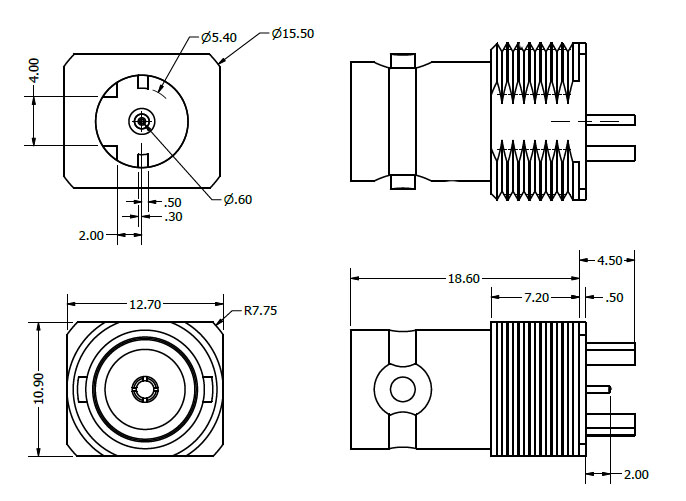

The C-SX-220ZZ is part of a range of connectors that have been designed with the same PCB footprint, giving a choice of connector style, which can be used on the same PCB design. Included in this edge mounted range is a 12GHz Micro BNC connector (C-SX-147) and a 6GHz DIN 1.0/2.3 connector (C-SX-219GZZ). The connectors in this range are for PCB thicknesses of 1.6mm. Nuts and washers for this connector are available separately. All connectors in this range are also available for other board thicknesses.
