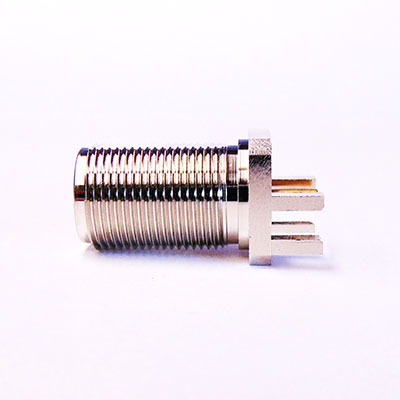

C-SX-235 N Type Edge Mounted bulkhead connector side

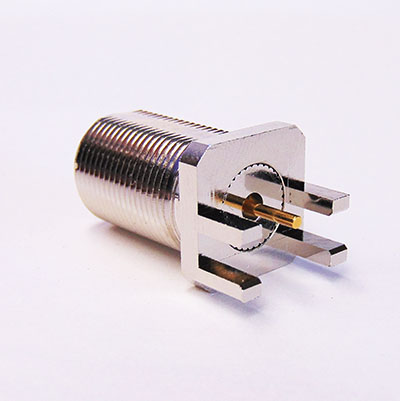

C-SX-235 N Type End Launch Bulkhead Connector

C-SX-235HT – 6GHz Edge Mounted N Type Connector

Name: C-SX-235HT - 6GHz Edge Mounted N Type Connector
SKU: C-SX-235HT
Availability: InStock

£0.00

PCB Edge Mount ‘N’ Series connector suitable for use in lower frequency microwave systems, where ruggedness and high transmission power are needed. Typical applications include spectrum analysers , Mobile communication base stations and RF plasma generators. The C-SX-235HT is a bulkhead edge mounting N Type socket connector which for use with printed circuit boards of thickness 4.0mm. The connector is supplied […]

SKU: C-SX-235HT

Category: ‘N’ Series, All Products, Coaxial Connectors

Tags: 50 ohm, 6GHz, Edge Mounted, N Type

Description

Description

PCB Edge Mount ‘N’ Series connector suitable for use in lower frequency microwave systems, where ruggedness and high transmission power are needed. Typical applications include spectrum analysers , Mobile communication base stations and RF plasma generators. The C-SX-235HT is a bulkhead edge mounting N Type socket connector which for use with printed circuit boards of thickness 4.0mm. The connector is supplied with nut and washer.
