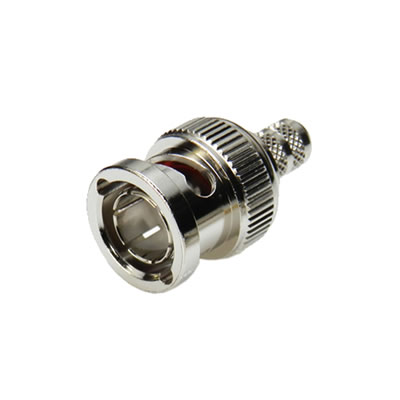

XBD-1002-NGXX – BNC Free Cable Plug
£0.00
This range of BNC free cable plugs are designed for crimp termination to the cable. Available for 3 cable types: AD Group Cables (RG174 or 316) offer a 50Ω Impedance with a 0 – 4GHx frequency rangeAK Group Cables (RG213, 8A, 393 or URM67) offer a 50Ω Impedance with a 0 – 4GHx frequency rangeAF […]
Description

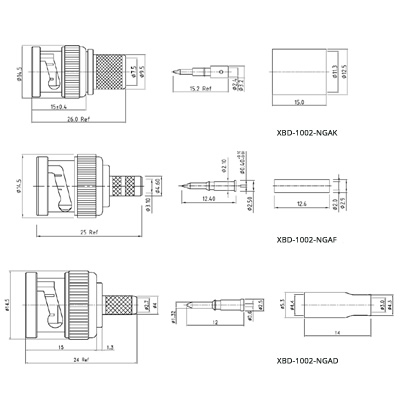

This range of BNC free cable plugs are designed for crimp termination to the cable. Available for 3 cable types:
AD Group Cables (RG174 or 316) offer a 50Ω Impedance with a 0 – 4GHx frequency range
AK Group Cables (RG213, 8A, 393 or URM67) offer a 50Ω Impedance with a 0 – 4GHx frequency range
AF Group Cables (RG179) offer a 75Ω Impedance with a 0 – 1GHx frequency range
The following tools are recommended for this connector:
XBD-1002-NGAD = TLG 111 and TLG 109
XBD-1002-NGAF = TLG 109
