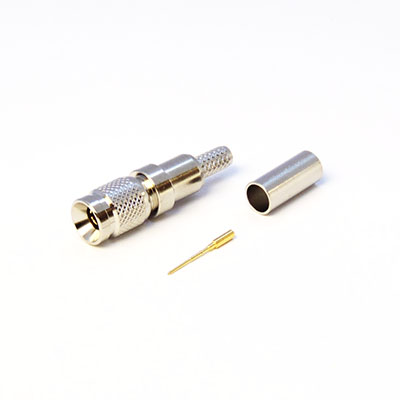

XGT8013 Cable Mounted DIN 1023

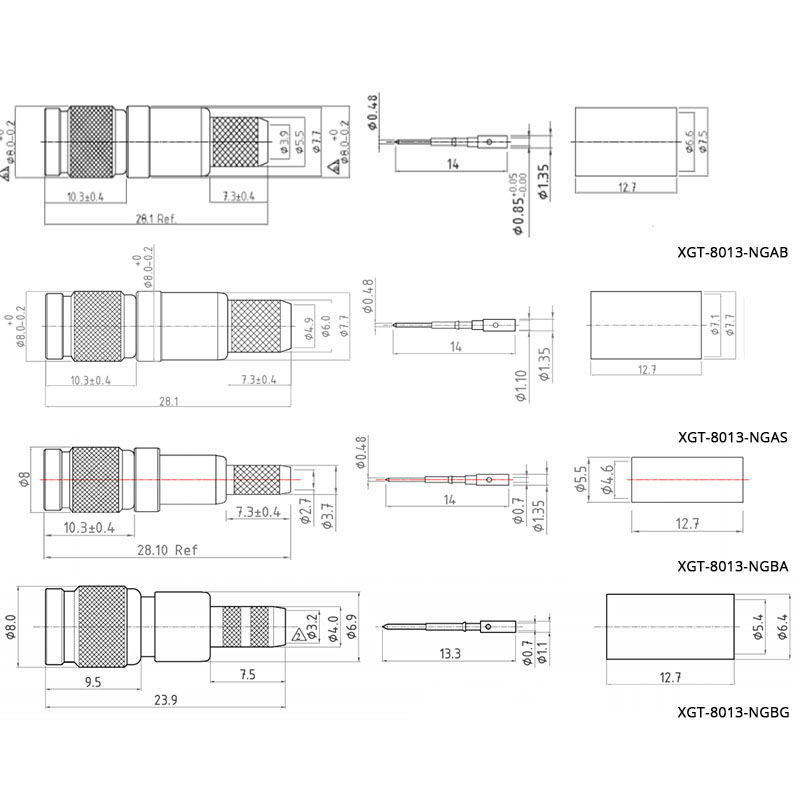

XGT-8013-NGXX Cable Mounted DIN 1023a

XGT-8013-BGXX – DIN 1.0 / 2.3 Free Cable Plug

£0.00

The XGT-8013-NGXX range is and precision 75Ω cable mounted DIN 1.0 / 2.3 plug which is suitable for frequencies up to 6GHz. The connectors are part of the 6G-SDI CoaxVision™ range and are compatible with the SMPTE ST-2081. which allows 6Gbits/s over a single channel. The range of 3 connectors support cable groups of AB (RG59B/U, […]

SKU: XGT-8013-NGXX
Category: , , , , , , , , , , , , , , , , , ,
Tags: , ,

Description

The XGT-8013-NGXX range is and precision 75Ω cable mounted DIN 1.0 / 2.3 plug which is suitable for frequencies up to 6GHz. The connectors are part of the 6G-SDI CoaxVision™ range and are compatible with the SMPTE ST-2081. which allows 6Gbits/s over a single channel.

The range of 3 connectors support cable groups of AB (RG59B/U, 1505A), AS (RG6, 1694R, 4694R) and BA (1855A, 4855R and mini RG59).

The following tools are recommended for use with this connector:
XGT-8013-NGAB = TLG 109
XGT-8013-NGBA = TLG 109
XGT-8013-NGBG = TLG 123
