XGT-8015-NGBA – DIN 1.0 / 2.3 Screw On Cable Mounted Plug

Name: XGT-8015-NGBA - DIN 1.0 / 2.3 Screw On Cable Mounted Plug
SKU: XGT-8015-NGBA
Availability: InStock

£0.00

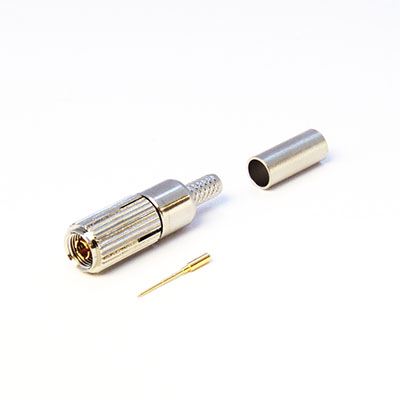

The XGT-8015-NGBA is a cable mounted DIN 1.0 / 2.3 which features a screw on locking system. The connector is suitable for cables in the BA group of cables including 1855A, 4855R and mini RG59. This a precision 75Ω connector which meets the STMPE ST 2081 standard, which allows 6Gbits/s speed to be acheived over […]

SKU: XGT-8015-NGBA

Category: All Products, Belden 1855A Cable, Belden 4855R Cable, Coaxial Connectors, DIN 1.0 / 2.3, Mini RG59 Cable, RG180BU Cable

Tags: 6GHz, Cable Mounted, DIN 1.0/2.3

Description

Description

The XGT-8015-NGBA is a cable mounted DIN 1.0 / 2.3 which features a screw on locking system. The connector is suitable for cables in the BA group of cables including 1855A, 4855R and mini RG59. This a precision 75Ω connector which meets the STMPE ST 2081 standard, which allows 6Gbits/s speed to be acheived over a single connection.

The following tools is recommended for use with this connector:
XGT-8015-NGBA = TLG 109 or TLG 110
