XTT-2011-NGXX – TNC Bulkhead Socket
£0.00
The XTT-2011-NGXX is a range of two TNC bulkhead socket connectors that are suitable for frequencies up to 3GHz. XTT-2011-NGAF is for cables in the group AF which include RG179B/U XTT-2011-NGBA if for cables in the group BA which include 1855A, 4955R and mini RG59 Each connector is supplied with nut, washer and O ring. […]
Description

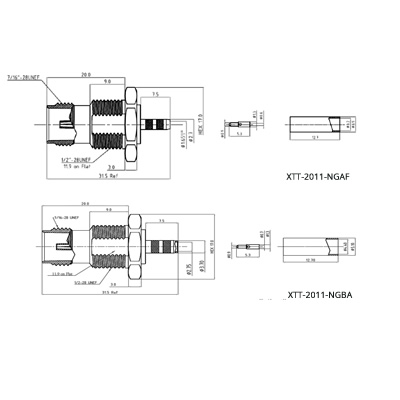

The XTT-2011-NGXX is a range of two TNC bulkhead socket connectors that are suitable for frequencies up to 3GHz.
XTT-2011-NGAF is for cables in the group AF which include RG179B/U
XTT-2011-NGBA if for cables in the group BA which include 1855A, 4955R and mini RG59

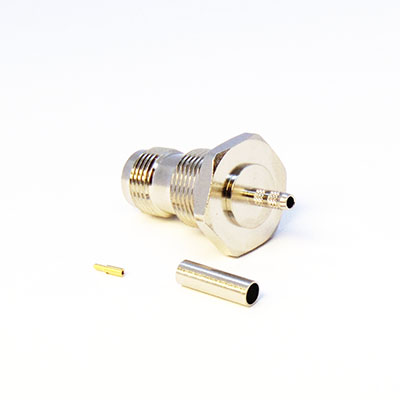

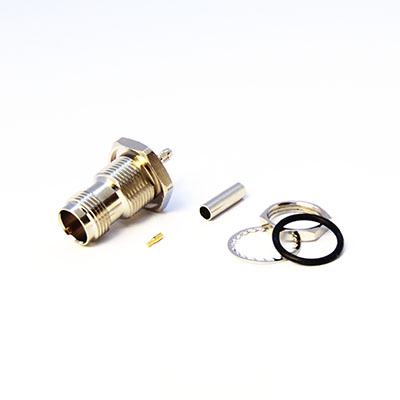

Each connector is supplied with nut, washer and O ring.
The following tools are recommended for use with this connector:
XTT-2011-NGAF = TLG 116
